Описание

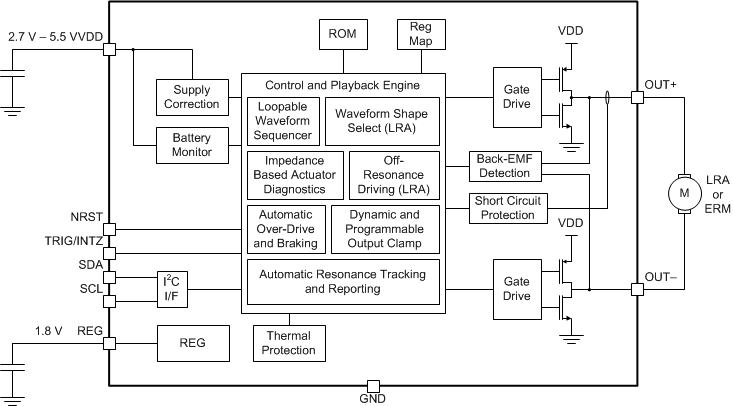

The DRV2624 device is a haptic driver that relies on a proprietary closed-loop architecture to deliver sharp, strong, and consistent haptic effects while optimizing power consumption. The internal memory and loopable waveform sequencer, together with the automatic overdrive and braking simplifies the process of generating crisp and optimum haptic effects, reducing the burden imposed into the processing unit. The DRV2624 device features an automatic go-to-standby state and a battery preservation function to help reduce power consumption without user intervention. The NRST pin allows for a full shutdown state for additional power savings. The waveform shape selection allows for sine-wave and square-wave drive to customize the haptic feel as well as the audible performance. Off-resonance driving with automatic braking simplifies the implementation of non-resonant haptic solutions.

Ultra Low-Power Shutdown Mode
Low-Power Standby State
Resistance-Based Actuator Diagnostics
SimpleDrive One-Wire Vibration Scheme
Automatic Resonance Tracking and Reporting
Automatic Overdrive and Braking
Automatic Level Calibration
Drive Compensation Over Battery Discharge
Configurable Battery Monitor with Power Preservation
Off-Resonance Driving with Auto-Braking
LRA Waveform Shape Selection
Integrated RAM with Loopable Waveform Sequencer
Real-Time Playback (RTP) Mode
I²C-Controlled Digital Playback Engine
Hardware and Software Trigger Option
Automatic Transition to Standby with Auto-Brake
Optional Interrupt Pin
1.8-V Compatible, VDD Tolerant Digital Interface Patent pending control algorithm

Haptic actuator type	ERM, LRA
Features	Advanced power saving, RAM available, Smart loop
Input signal	Analog, I2C, PWM
Vs (min) (V)	2.7
Vs (max) (V)	5.5
Vout (max) (V)	11
Peak-to-peak output voltage (max) (V)	11
Iq (typ) (mA)	2.5
Shutdown current (ISD) (µA)	0.105
Startup time (ms)	1
Operating temperature range (°C)	-40 to 85
Rating	Catalog
