Описание

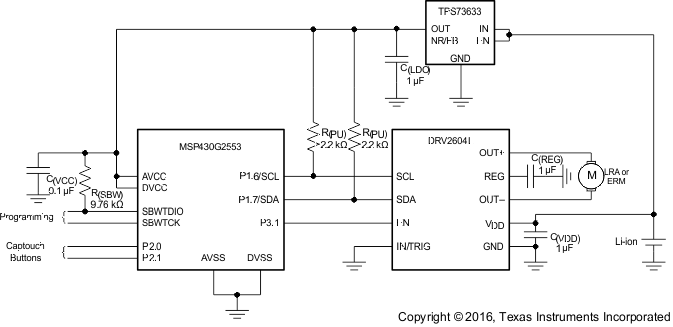

The DRV2604L device is a low-voltage haptic driver that provides a closed-loop actuator-control system for high-quality tactile feedback for ERM and LRA. This schema helps improve actuator performance in terms of acceleration consistency, start time, and brake time and is accessible through a shared I2C compatible bus or PWM input signal. The DRV2604L device includes enough integrated RAM to allow the user to pre-load over 100 customized smart-loop architecture waveforms. These waveforms can be instantly played back through I2C or optionally triggered through a hardware trigger terminal. Additionally, the real-time playback mode allows the host processor to bypass the memory playback engine and play waveforms directly from the host through I2C. The smart-loop architecture inside the DRV2604L device allows simple auto-resonant drive for the LRA as well as feedback-optimized ERM drive allowing for automatic overdrive and braking. The smart-loop architecture creates a simplified input waveform interface as well as reliable motor control and consistent motor performance. The DRV2604L device also features automatic transition to an open-loop system in the event that an LRA actuator is not generating a valid back-EMF voltage. When the LRA generates a valid back-EMF voltage, the DRV2604L device automatically synchronizes with the LRA. The DRV2604L also allows for open-loop driving through the use of internally-generated PWM.

Flexible Haptic and Vibration Driver
- LRA (Linear Resonance Actuator)
- ERM (Eccentric Rotating Mass)
I²C-Controlled Digital Playback Engine
- Waveform Sequencer and Trigger
- Real-Time Playback Mode through I²C
- Internal RAM for Customized Waveforms
- I²C Dual-Mode Drive (Open and Closed Loop)
Smart-Loop Architecture (Patent Pending Control Algorithm)
- Automatic Overdrive and Braking
- Automatic Resonance Tracking and Reporting (LRA Only)
- Automatic Actuator Diagnostic
- Automatic Level Calibration
- Wide Support for Actuator Models
Immersion TouchSense^® 3000 Compatible
Drive Compensation Over Battery Discharge
Wide Voltage Operation (2 V to 5.2 V)
Efficient Differential Switching Output Drive
PWM Input with 0% to 100% Duty-Cycle Control Range
Hardware Trigger Input
Fast Startup Time
1.8-V Compatible, V_DD-Tolerant Digital Interface

Haptic actuator type	ERM, LRA
Features	RAM available, Smart loop
Input signal	Analog, I2C, PWM
Vs (min) (V)	2
Vs (max) (V)	5.2
Vout (max) (V)	5.5
Peak-to-peak output voltage (max) (V)	10.4
Iq (typ) (mA)	0.5
Shutdown current (ISD) (µA)	4
Startup time (ms)	0.7
Operating temperature range (°C)	-40 to 85
Rating	Automotive, Catalog
