Описание

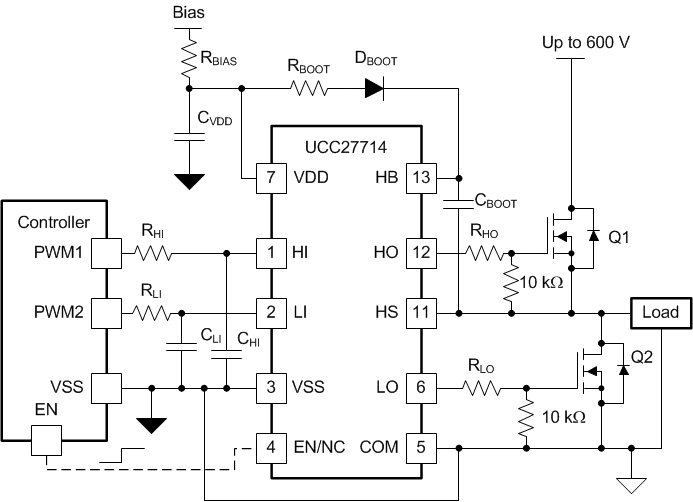

UCC27714 is a 600-V high-side, low-side gate driver with 4-A source and 4-A sink current capability, targeted to drive power MOSFETs or IGBTs. The device comprises of one ground-referenced channel (LO) and one floating channel (HO) which is designed for operating with bootstrap supplies. The device features excellent robustness and noise immunity with capability to maintain operational logic at negative voltages of up to –8 VDC on HS pin (at VDD = 12 V). The device accepts a wide range bias supply input from 10 V to 20 V and offers UVLO protection for both the VCC and HB bias supply pins. UCC27714 is available in SOIC-14 package and rated to operate from –40°C to 125°C.

High-Side, Low-Side Configuration, with Independent Inputs
Fully Operational up to 600 V (HS Pin)
Floating Channel Designed for Bootstrap Operation
Peak Output Current Capability of 4-A Sink 4-A Source at VDD = 15 V
Best-In-Class Propagation Delay (125-ns Maximum)
Best-In-Class Delay Matching (20-ns Maximum)
TTL and CMOS Compatible Input Logic
VDD Bias Supply Range of 10 V to 20 V
Bias UVLO Protection for Both Channels
Rail-to-Rail Drive
Robust Operation Under Negative Voltage Transients
High dv/dt Immunity (HS Pin)
Separated Grounds for Logic (VSS) and Driver (COM) with Capability to Sustain Voltage Difference
Optional Enable Function (Pin 4)
Outputs Held in LOW when Inputs Floating
Inputs and Enable Pin Voltage Levels Not Restricted by VDD Pin Bias Supply Voltage
High and Low Voltage Pins Separated for Maximum Creepage and Clearance
Negative Voltage Handling Capability on Input and Enable Pins

Bus voltage (max) (V)	600
Power switch	IGBT, MOSFET
Input VCC (min) (V)	10
Input VCC (max) (V)	18
Peak output current (A)	4
Operating temperature range (°C)	-40 to 125
Undervoltage lockout (typ) (V)	10
Rating	Catalog
Propagation delay time (µs)	0.09
Rise time (ns)	15
Fall time (ns)	15
Iq (mA)	0.3
Input threshold	CMOS, TTL
Channel input logic	Noninverting
Negative voltage handling at HS pin (V)	-8
Driver configuration	CMOS compatible, Dual, Noninverting, TTL compatible
