Описание

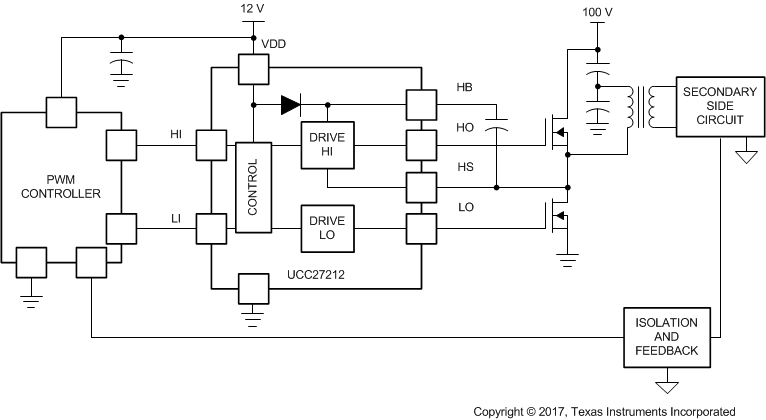

The UCC27212 device has a peak output current of 4-A source and 4-A sink, which allows for the ability to drive large power MOSFETs. The device features an on-chip 120-V rated bootstrap diode eliminating the need for external discrete diodes. The input structure can directly handle –10 V, which increases robustness and is also independent of supply voltage. The UCC27212 offers 5 V UVLO which helps lower power losses and increased input hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity. The switching node of the UCC27212 (HS pin) can handle –18-V maximum, which allows the high-side channel to be protected from inherent negative voltages.

4-A Sink, 4-A Source Output Currents
Maximum Boot Voltage 120-V DC
7-V to 17-V VDD Operating Range
20-V ABS Maximum VDD Operating Range
5-V Turn-off Under Voltage Lockout (UVLO)
Input Pins Can Tolerate –10 V to +20 V
7.2-ns Rise and 5.5-ns Fall Time (1000-pF Load)
20-ns Typical Propagation Delay
4-ns Typical Delay Matching
Specified from –40°C to +140°C

Bus voltage (max) (V)	120
Power switch	MOSFET
Input VCC (min) (V)	5
Input VCC (max) (V)	17
Peak output current (A)	4
Operating temperature range (°C)	-40 to 140
Undervoltage lockout (typ) (V)	5
Rating	Catalog
Propagation delay time (µs)	0.02
Rise time (ns)	7.2
Fall time (ns)	5.5
Iq (mA)	0.001
Input threshold	TTL
Channel input logic	TTL
Negative voltage handling at HS pin (V)	-20
Driver configuration	Dual inputs
