Описание

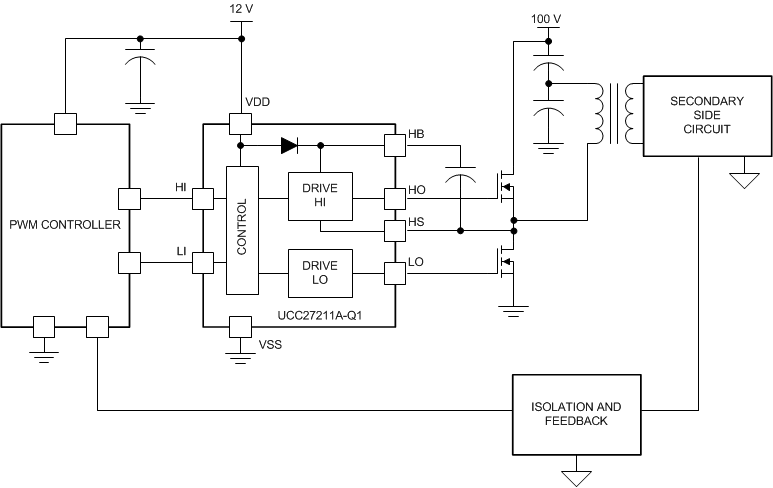

The UCC27211A-Q1 device driver is based on the popular UCC27201 MOSFET drivers; but, this device offers several significant performance improvements.The peak output pullup and pulldown current has been increased to 4-A source and 4-A sink, and pullup and pulldown resistance have been reduced to 0.9 Ω, and thereby allows for driving large power MOSFETs with minimized switching losses during the transition through the Miller Plateau of the MOSFET. The input structure can directly handle –10 VDC, which increases robustness and also allows direct interface to gate-drive transformers without using rectification diodes. The inputs are also independent of supply voltage and have a 20-V maximum rating.The switching node of the UCC27211A-Q1 (HS pin) can handle –18-V maximum, which allows the high-side channel to be protected from inherent negative voltages caused by parasitic inductance and stray capacitance. The UCC27211A-Q1 has increased hysteresis that allows for interface to analog or digital PWM controllers with enhanced noise immunity.The low-side and high-side gate drivers are independently controlled and matched to 2 ns between the turn on and turn off of each other.An on-chip 120-V rated bootstrap diode eliminates the external discrete diodes. Undervoltage lockout is provided for both the high-side and the low-side drivers which provides symmetric turn on and turn off behavior and forces the outputs low if the drive voltage is below the specified threshold. The UCC27211A-Q1 device is offered in an 8-Pin SO-PowerPAD package.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade –40°C to +140°C Ambient Operating Temperature Range
- Device HBM Classification Level 2
- Device CDM Classification Level C6
Drives Two N-Channel MOSFETs in High-Side and Low-Side Configuration With Independent Inputs
Maximum Boot Voltage 120-V DC
4-A Sink, 4-A Source Output Currents
0.9-Ω Pullup and Pulldown Resistance
Input Pins Can Tolerate –10 V to +20 V and are Independent of Supply Voltage Range
TTL Compatible Inputs
8-V to 17-V VDD Operating Range, (20-V ABS MAX)
7.2-ns Rise and 5.5-ns Fall Time With 1000-pF Load
Fast Propagation Delay Times (20-ns typical)
4-ns Delay Matching
Symmetrical Undervoltage Lockout for High-Side and Low-Side Driver
Available in the Industry Standard SO-PowerPAD SOIC-8 Package
Specified from –40 to +140°C

Bus voltage (max) (V)	110
Power switch	MOSFET
Input VCC (min) (V)	8
Input VCC (max) (V)	17
Peak output current (A)	4
Operating temperature range (°C)	-40 to 140
Undervoltage lockout (typ) (V)	8
Rating	Automotive
Propagation delay time (µs)	0.02
Rise time (ns)	8
Fall time (ns)	7
Iq (mA)	0.001
Input threshold	TTL
Channel input logic	TTL
Negative voltage handling at HS pin (V)	-12
Features	Negative voltage handling
TI functional safety category	Functional Safety-Capable
Driver configuration	Dual, Noninverting, TTL compatible
