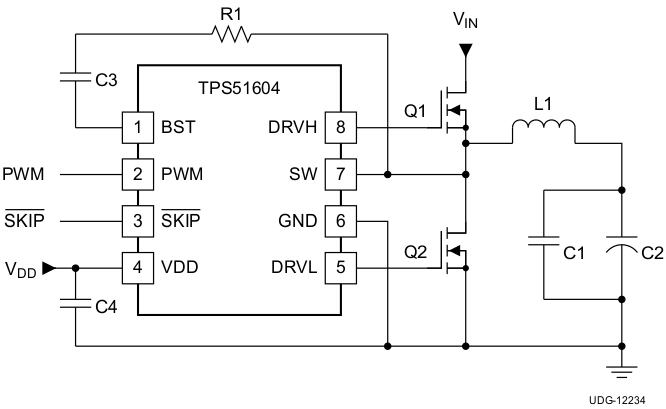

The TPS51604 drivers are optimized for high-frequency CPU
VCORE applications. Advanced features such as reduced dead-time drive and
auto zero crossing are used to optimize efficiency over the entire load range.
The SKIP pin provides the option of CCM operation to support
controlled management of the output voltage. In addition, the TPS51604 supports
two low-power modes. With the PWM input in tri-state, quiescent current is reduced to 130 µA, with
immediate response. When SKIP is held at tri-state, the current is reduced
to 8 µA (typically 20 µs is required to resume switching). Paired with the appropriate TI
controller, the drivers deliver an exceptionally high performance power supply system.
The TPS51604 device is packaged in a space saving, thermally-enhanced
8-pin, 2-mm × 2-mm WSON package and operates from –40°C to 105°C.
- Reduced Dead-Time Drive Circuit for Optimized
CCM - Automatic Zero Crossing Detection for Optimized
DCM Efficiency - Multiple Low-Power Modes for Optimized Light-
Load Efficiency - Optimized Signal Path Delays for High-Frequency
Operation - Integrated BST Switch Drive Strength Optimized
for Ultrabook FETs - Optimized for 5-V FET Drive
- Conversion Input Voltage Range (VIN): 4.5 to 28 V
- 2-mm × 2-mm, 8-Pin, WSON Thermal Pad
Package
| Bus voltage (max) (V) | 28 |
| Power switch | MOSFET |
| Input VCC (min) (V) | 4.5 |
| Input VCC (max) (V) | 5.5 |
| Peak output current (A) | 4 |
| Operating temperature range (°C) | -40 to 105 |
| Undervoltage lockout (typ) (V) | 4 |
| Rating | Catalog |
| Propagation delay time (µs) | 0.015 |
| Rise time (ns) | 15 |
| Fall time (ns) | 10 |
| Iq (mA) | 0.5 |
| Channel input logic | TTL |
| Negative voltage handling at HS pin (V) | -0.1 |
| Features | Dead time control, Synchronous rectification |
| Driver configuration | Dual |
