Описание

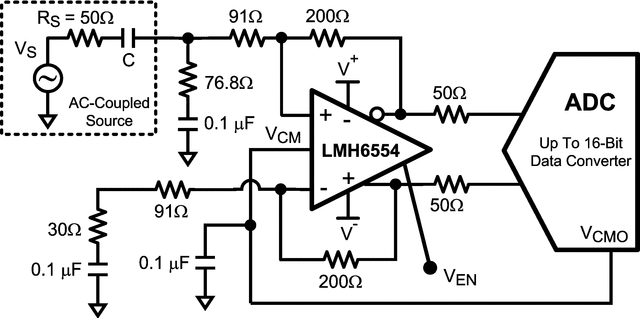

The LMH6554 device is a high-performance fully differential amplifier designed to provide the exceptional signal fidelity and wide large-signal bandwidth necessary for driving 8- to 16-bit high-speed data acquisition systems. Using TIs proprietary differential current mode input stage architecture, the LMH6554 has unity gain, small-signal bandwidth of 2.8 GHz and allows operation at gains greater than unity without sacrificing response flatness, bandwidth, harmonic distortion, or output noise performance. The low-impedance differential output of the device is designed to drive ADC inputs and any intermediate filter stage. The LMH6554 delivers 16-bit linearity up to 75 MHz when driving 2-V peak-to-peak into loads as low as 200 Ω. The LMH6554 is fabricated in TIs advanced complementary BiCMOS process and is available in a space-saving 14-lead UQFN package for higher performance.

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	4.7
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	5.25
BW at Acl (MHz)	2800
Acl, min spec gain (V/V)	1
Slew rate (typ) (V/µs)	6200
Architecture	Bipolar, Current FB, Fully Differential ADC Driver
Vn at flatband (typ) (nV√Hz)	0.9
Iq per channel (typ) (mA)	52
Rail-to-rail	No
Vos (offset voltage at 25°C) (max) (mV)	3
Operating temperature range (°C)	-40 to 125
Iout (typ) (mA)	150
2nd harmonic (dBc)	68
3rd harmonic (dBc)	70
Frequency of harmonic distortion measurement (MHz)	250
GBW (typ) (MHz)	2500
Input bias current (max) (pA)	8000000
Features	Shutdown
CMRR (typ) (dB)	83
Rating	Catalog
