Описание

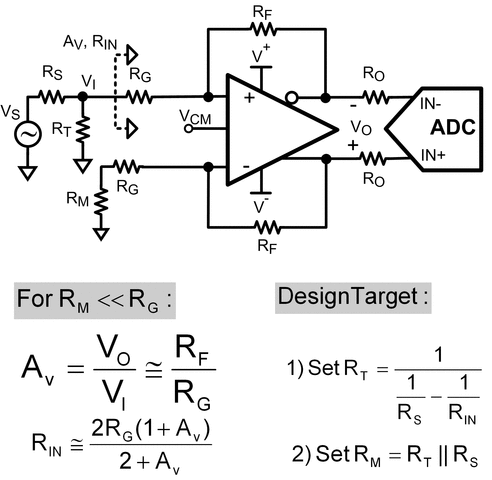

The LMH6551Q is a high performance voltage feedback differential amplifier. The LMH6551Q has the high speed and low distortion necessary for driving high performance ADCs as well as the current handling capability to drive signals over balanced transmission lines like CAT 5 data cables. The LMH6551Q can handle a wide range of video and data formats. With external gain set resistors, the LMH6551Q can be used at any desired gain. Gain flexibility coupled with high speed makes the LMH6551Q suitable for use as an IF amplifier in high performance communications equipment. The LMH6551Q is available in the VSSOP package.

370 MHz −3 dB Bandwidth (V_OUT = 0.5 V_PP)
50 MHz 0.1 dB Bandwidth
2400 V/µs Slew Rate
18 ns Settling Time to 0.05%
−94/−96 dB HD2/HD3 @ 5 MHz
LMH6551Q is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow

All trademarks are the property of their respective owners.

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	3
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	11
BW at Acl (MHz)	370
Acl, min spec gain (V/V)	1
Slew rate (typ) (V/µs)	2400
Architecture	Bipolar, Fully Differential ADC Driver
Vn at flatband (typ) (nV√Hz)	6
Iq per channel (typ) (mA)	12.5
Rail-to-rail	No
Vos (offset voltage at 25°C) (max) (mV)	5
Operating temperature range (°C)	-40 to 125
Iout (typ) (mA)	65
2nd harmonic (dBc)	94
3rd harmonic (dBc)	96
Frequency of harmonic distortion measurement (MHz)	5
GBW (typ) (MHz)	370
Input bias current (max) (pA)	10000000
CMRR (typ) (dB)	80
Rating	Automotive
