Описание

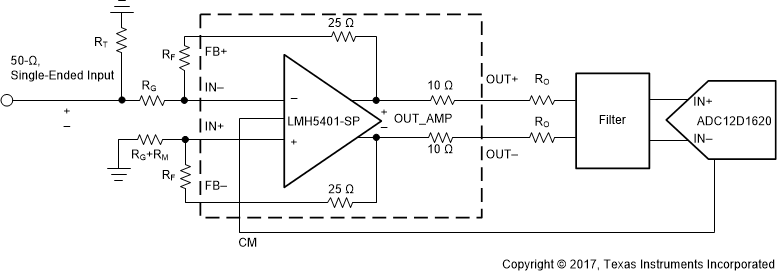

The LMH5401-SP is a very high-performance, radiation hardened, differential amplifier optimized for radio frequency (RF), intermediate frequency (IF), or high-speed, dc-coupled, time-domain applications. The device is ideal for dc- or ac-coupled applications that may require a single-ended-to-differential (SE-DE) conversion when driving an analog-to-digital converter (ADC). The LMH5401-SP generates very low levels of second- and third-order distortion when operating in SE-DE or differential-to-differential (DE-DE) mode.The amplifier is optimized for use in both SE-DE and DE-DE systems. The device has unprecedented usable bandwidth from dc to 2 GHz. The LMH5401-SP can be used for SE-DE conversions in the signal chain without external baluns in a wide range of applications such as test and measurement, broadband communications, and high-speed data acquisition.A common-mode reference input pin is provided to align the amplifier output common-mode with the ADC input requirements. Power supplies between 3.3 V and 5 V can be selected and dual-supply operation is supported when required by the application. A power-down feature is also available for power savings.This level of performance is achieved at a very low power level of 300 mW when a 5-V supply is used. The device is fabricated in Texas Instruments advanced complementary BiCMOS process and is available in a space-saving, LCCC-14 package for higher performance.

QMLV (QML class V) MIL-PRF-38535 qualified, SMD 5962R1721401VXC
- Radiation hardness assurance (RHA) up to 100-krad(Si) total ionizing dose (TID)
- Single event latch-up (SEL) immune to
  LET = 85 MeV-cm²/mg
- Qualified over the military temperature range (–55°C to 125°C)
Gain bandwidth product (GBP): 6.5 GHz
Excellent linearity performance:
DC to 2 GHz
Slew rate: 17,500 V/µs
Low HD2, HD3 distortion
(500 mV_PP, 100 Ω, SE-DE, Gv = 17 dB)⁽¹⁾:
- 100 MHz: HD2 at –91 dBc, HD3 at –95 dBc
- 200 MHz: HD2 at –86 dBc, HD3 at –85 dBc
- 500 MHz: HD2 at –80 dBc, HD3 at –80 dBc
- 1 GHz: HD2 at –53 dBc, HD3 at –70 dBc
- 2 GHz: HD2 at –68 dBc, HD3 at –56 dBc
Low IMD2, IMD3 distortion
(1 V_PP, 100 Ω, SE-DE, Gv = 17 dB)⁽¹⁾:
- 500 MHz: IMD2 at –90 dBc, IMD3 at –79 dBc
- 1 GHz: IMD2 at –80 dBc, IMD3 at –61 dBc
- 2 GHz: IMD2 at –64 dBc, IMD3 at –42 dBc
High OIP2, OIP3. Gp = 8 dB⁽¹⁾
- 500 MHz: OIP2 at 91 dBm, OIP3 at 47.7 dBm
- 1 GHz: OIP2 at 80 dBm, OIP3 at 37.5 dBm
Input voltage noise: 1.25 nV/√Hz
Input current noise: 3.5 pA/√Hz
Supports single- and dual-supply operation
Current consumption: 60 mA
Power-down feature ⁽¹⁾

⁽¹⁾Power Gain (Gp) = 8 dB; Voltage Gain (Gv) = 17 dB; RL_total = 200 Ω. See Output Reference Nodes and Gain Nomenclature section for more details.

Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	3.15
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	5.25
BW at Acl (MHz)	4100
Acl, min spec gain (V/V)	5
Slew rate (typ) (V/µs)	17500
Architecture	Bipolar, Fully Differential ADC Driver
Vn at flatband (typ) (nV√Hz)	1.25
Iq per channel (typ) (mA)	60
Rail-to-rail	No
Vos (offset voltage at 25°C) (max) (mV)	5
Operating temperature range (°C)	-55 to 125, 25 to 25
Iout (typ) (mA)	50
2nd harmonic (dBc)	91
3rd harmonic (dBc)	95
Frequency of harmonic distortion measurement (MHz)	100
GBW (typ) (MHz)	6500
Input bias current (max) (pA)	60000000
Features	Shutdown
CMRR (typ) (dB)	72
Rating	Space
