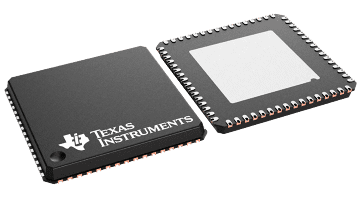

DS90UB941AS-Q1 Texas instruments

DS90UB941AS-Q1

Уточнить цену

DS90UB941AS-Q1

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

The DS90UB941AS-Q1 is a dual DSI to FPD-Link III bridge serializer designed for automotive infotainment applications. When paired with an FPD-Link III DS90UB940N-Q1, DS90UB948-Q1, DS90UB924-Q1, DS90UB926Q-Q1 or DS90UB928Q-Q1 deserializer, the DS90UB941AS-Q1 can supply 1- or 2-lane high-speed serial streams over cost-effective, 50 Ω, single-ended coaxial cables or over 100 Ω, differential shielded twisted-pair (STP) and shielded twisted-quad (STQ) cables. In response to the rise in number and variance of displays in infotainment systems, the DS90UB941AS-Q1 can support symmetric and asymmetric splitting.The DS90UB941AS-Q1 can consolidate video data over two differential pairs to simplify system design and decrease the interconnect size and weight of the application.The FPD-Link III interface supports video and audio data transmission and full duplex control, including I2C communication and up to eight I2S audio channels over the same high-speed serial link. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization.

AEC-Q100 qualified for automotive applications with the following results:
- Device temperature grade 2: −40℃ to +105℃ ambient operating temperature
Supports pixel clock frequency up to 210 MHz for 3K (2880x1620) at 30Hz, QXGA (2048x1536), 2K (2880x1080), WUXGA (1920x1200), or 1080p60 (1920x1080) resolutions with 24-bit color depth
MIPI D-PHY / Display Serial Interface (DSI) receiver provides a high-bandwidth interface to video processor or FPGA
- Dual DSI input ports with up to 4 data lanes each
- Up to 1.5 Gbps per lane
- Superframe with symmetric and asymmetric unpacking capability
- ECC and CRC generation
- Virtual channel capability
Single and dual FPD-Link III outputs
- Single link: up to 105MHz pixel clock
- Dual link: up to 210MHz pixel clock
Functional Safety-Capable
- Documentation available to aid ISO 26262 system design
Symmetric and asymmetric video splitting

Function	Serializer
Color depth (bps)	24
Input compatibility	MIPI DSI
Pixel clock frequency (max) (MHz)	210
Output compatibility	FPD-Link III LVDS
Features	Low-EMI Point-to-Point Communication
Signal conditioning	Adaptive Equalizer
EMI reduction	BIST
Diagnostics	BIST
Rating	Automotive
Operating temperature range (°C)	-40 to 105
TI functional safety category	Functional Safety-Capable
