Описание

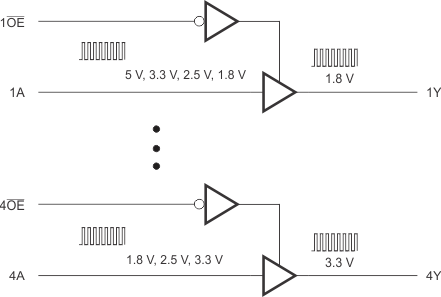

SN74LV4T125 is a low-voltage CMOS buffer gate that operates at a wider voltage range for portable, telecom, industrial, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8-V, 2.5-V, 3.3-V, and 5-V CMOS levels. The input is designed with a lower threshold circuit to match 1.8-V input logic at VCC = 3.3 V and can be used in 1.8 V to 3.3 V level-up translation. In addition, the 5-V tolerant input pins enable down translation (for example, 3.3 V to 2.5 V output at VCC = 2.5 V). The wide VCC range of 1.8 V to 5.5 V allows the generation of desired output levels to connect to controllers or processors. The SN74LV4T125 device is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.

Single-Supply Voltage Translator at 5.0-V, 3.3-V, 2.5-V, and 1.8-V V_CC
Operating Range of 1.8 V to 5.5 V
Up Translation
- 1.2 V⁽¹⁾ to 1.8 V at 1.8-V V_CC
- 1.5 V⁽¹⁾ to 2.5 V at 2.5-V V_CC
- 1.8 V⁽¹⁾ to 3.3 V at 3.3-V V_CC
- 3.3 V to 5.0 V at 5.0-V V_CC
Down Translation
- 3.3 V to 1.8 V at 1.8-V V_CC
- 3.3 V to 2.5 V at 2.5-V V_CC
- 5.0 V to 3.3 V at 3.3-V V_CC
Logic Output is Referenced to V_CC
Characterized up to 50 MHz at 3.3-V V_CC
5.5 V Tolerance on Input Pins
–40°C to 125°C Operating Temperature Range
Pb-Free Packages Available: SC-70 (RGY)
- 3.5 × 3.5 × 1 mm
Latch-Up Performance Exceeds 250 mA Per JESD 17
Supports Standard Logic Pinouts
I_off Support Partial-Power-Down Mode Operation
CMOS Output B Compatible with AUP125, LVC125 ⁽¹⁾

⁽¹⁾Refer the V_IH/V_IL and output drive for lower V_CC condition.

Technology family	LV-A
Applications	SPI
Bits (#)	4
Configuration	4 Ch A to B 0 Ch B to A
High input voltage (min) (V)	1
High input voltage (max) (V)	5.5
Vout (min) (V)	19
Vout (max) (V)	5.5
Data rate (max) (MBits)	100
IOH (max) (mA)	-16
IOL (max) (mA)	-16
Supply current (max) (µA)	5.5
Features	12.25, 32
Input type	TTL-Compatible CMOS
Output type	3-State, Balanced CMOS
Rating	Catalog
Operating temperature range (°C)	-40 to 125
