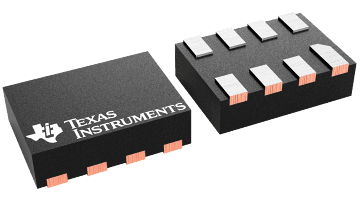

SN74AVC2T244 Texas instruments

SN74AVC2T244

Уточнить цену

SN74AVC2T244

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

This 2-bit unidirectional translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 0.9 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 0.9 V to 3.6 V. This allows for low-voltage translation between 0.9-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V and 3.6-V voltage nodes. For the SN74AVC2T244, when the output-enable ( OE) input is high, all outputs are placed in the high-impedance state. The SN74AVC2T244 is designed so that the OE input circuit is referenced to VCCA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Wide Operating V_CC Range of 0.9 V to 3.6 V
Low Static-Power Consumption, 6-µA Max I_CC
Output Enable Feature Allows User to Disable Outputs to Reduce Power Consumption
±24-mA Output Drive at 3.0 V
I_off Supports Partial Power-Down-Mode Operation
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input
Maximum Data Rates
- 380 Mbps (1.8-V to 3.3-V Translation)
- 200 Mbps (<1.8-V to 3.3-V Translation)
- 200 Mbps (Translate to 2.5 V or 1.8 V)
- 150 Mbps (Translate to 1.5 V)
- 100 Mbps (Translate to 1.2 V)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 5000-V Human-Body Model (A114-A)

Technology family	AVC
Bits (#)	2
Configuration	2 Ch A to B 0 Ch B to A
High input voltage (min) (V)	0.81
High input voltage (max) (V)	3.6
Vout (min) (V)	3000
Vout (max) (V)	3.6
Data rate (max) (MBits)	380
IOH (max) (mA)	-24
IOL (max) (mA)	-24
Supply current (max) (µA)	3.6
Features	1.4, 2.16
Input type	Standard CMOS
Output type	3-State, Balanced CMOS
Rating	Catalog
Operating temperature range (°C)	-40 to 85
