Описание

The DS150DF1610 is a sixteen-channel multi-rate retimer with integrated signal conditioning features. The device includes a fully adaptive Continuous Time Linear Equalizer (CTLE), Decision Feedback Equalizer (DFE), clock and data recovery (CDR), and a transmit FIR filter to enhance the reach and robustness over long, lossy, crosstalk impaired high speed serial links to achieve BER < 1×1015. Each channel of the DS150DF1610 independently locks to serial data rates between 12.5 and 15 Gbps plus the divide by 2, 4 and 8 sub-multiples. A simple external oscillator (±100ppm) that is synchronous or asynchronous with the incoming data stream is used as a calibration clock. A programmable transmit Finite Impulse Response (FIR) filter offers control of the pre-cursor, main tap and post-cursor for transmit equalization. The fully adaptive receive equalization (CTLE and DFE) enables longer distance transmission in lossy copper interconnects and backplanes with multiple connectors. A non-disruptive mission mode eye-monitor feature allows link monitoring internal to the receiver. The built-in PRBS generator and checker compliment the internal diagnostic features to complete standalone BERT measurements. Built-in JTAG enables manufacturing tests. To download the full datasheet, please send a request to: highspeed_datasheets@list.ti.com

Pin-Compatible Family
- DS150DF1610: 12.5 to 15G
- DS125DF1610: 9.8 to 12.5G
- DS110DF1610: 8.5 to 11.3G
Fully Adaptive CTLE
Self tuning DFE, with Optional Continuous
Adaption
Configurable VGA
Adjustable Transmit V_OD
Adjustable 3-tap Transmit FIR Filter
On-chip AC Coupling on Receive Inputs
Locks to Half/Quarter/Eighth Data Rates for
Legacy Support
On-chip Eye Monitor(EOM), PRBS Checker,
Pattern Generator
Supports JTAG Boundary Scan
Programmable Output Polarity Inversion
Input Signal Detection, CDR Lock Detection
Single 2.5 V ±5% Power Supply
SMBus Based Register Configuration
Optional EEPROM Configuration

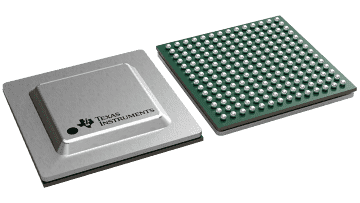

15 mm × 15 mm, 196-pin FCBGA Package
Operating Temp Range : –10°C to +85°C

Protocols	General purpose
Rating	Catalog
Operating temperature range (°C)	-10 to 85
