Описание

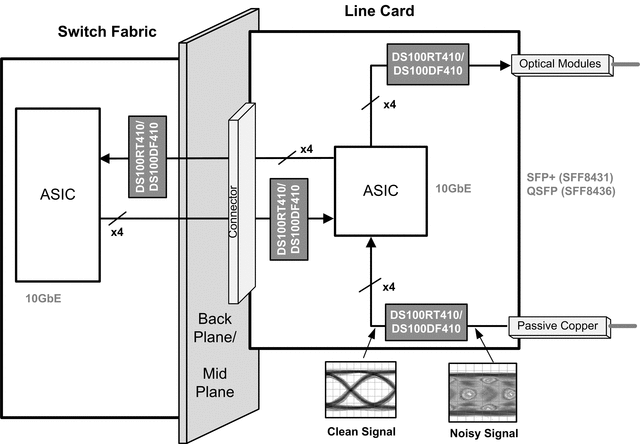

The DS100DF410 is four channel retimers with integrated signal conditioning. Each channel can independently lock to 10.3125 Gbps data rate to support 10GbE. The device includes a fully adaptive Continuous-Time Linear Equalizer (CTLE), Clock and Data Recovery (CDR) and transmit De-Emphasis (DE) driver. The DS100DF410 also includes a self calibrating 5-tap Decision Feedback Equalizer (DFE) to enable data transmission over long, lossy and crosstalk-impaired highspeed serial links to achieve BER < 1 × 1015. The programmable settings can be applied easily using the SMBus (I2C) interface, or they can be loaded via an external EEPROM. An on-chip eye monitor and a PRBS generator allow real-time measurement of high-speed serial data for system bring-up or field tuning. Flow-through pinout and single power supply make the DS100DF410 easy to use.

Each Channel Independently Locks to 10.3125 Gbps
Lock Operation (typically under 15 ms)
Low Latency (∼300 ps)
Adaptive Equalization up to 34 dB Boost at 5 GHz
Adjustable Transmit V_OD: 600 to 1300 mVp-p
Adjustable Transmit De-emphasis to –12 dB
Typical Power Dissipation (EQ+DFE+CDR+DE): 180 mW/channel
Programmable Output Polarity Inversion
Input Signal Detection, CDR Lock Detection/Indicator
On-chip Eye Monitor (EOM), PRBS Generator
Single 2.5 V ±5% Power Supply
SMBus/EEPROM Configuration Modes
Operating Temperature Range of –40°C to 85°C
WQFN 48-Pin, 7 mm × 7 mm Package
Easy Pin Compatible Upgrade Between Repeater and Retimers
- DS100RT410 (EQ+CDR+DE): 10.3125 Gbps
- DS100DF410 (EQ+DFE+CDR+DE): 10.3125 Gbps
- DS110RT410 (EQ+CDR+DE): 8.5–11.3 Gbps
- DS110DF410 (EQ+DFE+CDR+DE): 8.5–11.3 Gbps
- DS125RT410 (EQ+CDR+DE): 9.8–12.5 Gbps
- DS125DF410 (EQ+DFE+CDR+DE): 9.8–12.5 Gbps
- DS100BR410 (EQ+DE): Up to 10.3125 Gbps

Protocols	10G-SR/LR, 40G-SR4/LR4, General purpose, Infiniband
Rating	Catalog
Operating temperature range (°C)	-40 to 85
