Описание

The DP83846A is a full feature single Physical Layer device with integrated PMD sublayers to support both 10BASE-T and 100BASE-TX Ethernet protocols over Category 3 (10 Mb/s) or Category 5 Unsheilded twisted pair cables. The DP83846A is designed for easy implementation of 10/100 Mb/s Ethernet home or office solutions. It interfaces to Twisted Pair media via an external transformer. This device interfaces directly to MAC devices through the IEEE 802.3u standard Media Independent Interface (MII) ensuring interoperability between products from different vendors. The DP83846A utilizes on chip Digital Signal Processing (DSP) technology and digital Phase Lock Loops (PLLs) for robust performance under all operating conditions, enhanced noise immunity, and lower external component count when compared to analog solutions.

IEEE 802.3 ENDEC, 10BASE-T transceivers and filters
IEEE 802.3u PCS, 100BASE-TX transceivers and filters
IEEE 802.3 compliant Auto-Negotiation
Output edge rate control eliminates external filtering for Transmit outputs
BaseLine Wander compensation
5V/3.3V MAC interface
IEEE 802.3u MII (16 pins/port)
LED support (Link, Rx, Tx, Duplex, Speed, Collision)
Single register access for complete PHY status
10/100 Mb/s packet loopback BIST (Built in Self Test)
Low-power 3.3V, 0.35um CMOS technology
Power consumption < 495mW (typical)
5V tolerant I/Os

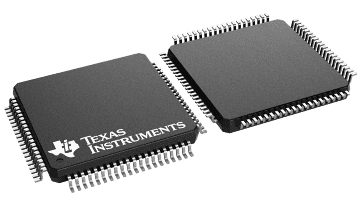

80-pin LQFP package (12w) x (12l) x (1.4h) mm

Rating	Catalog
Number of LEDs	6
