Описание

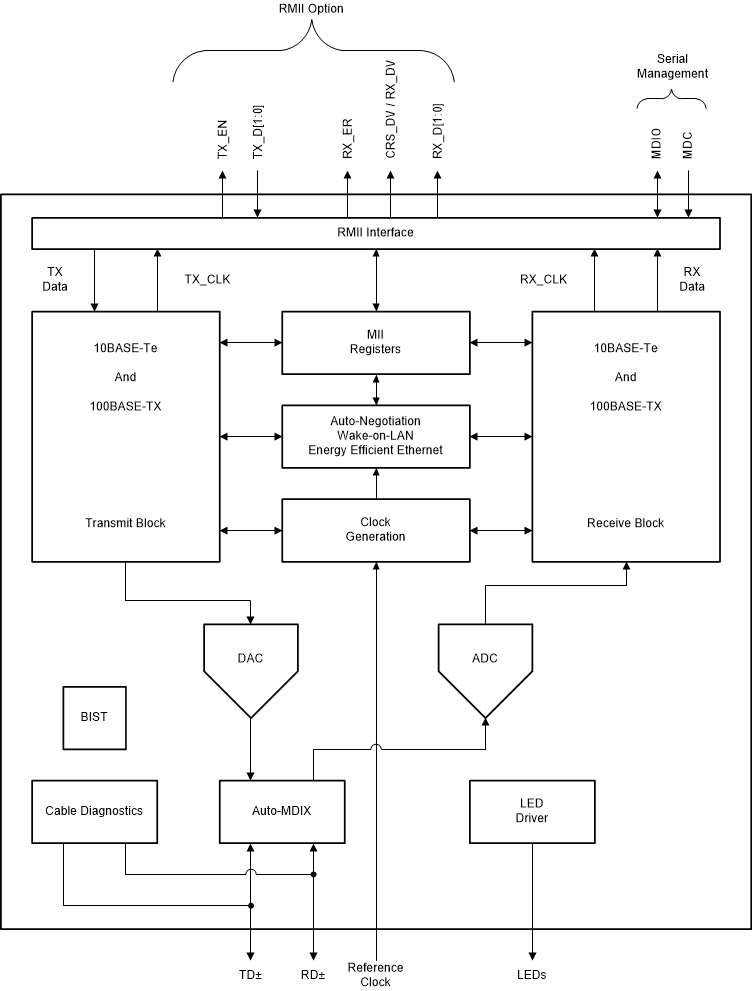

The DP83825I is an ultra small form factor, very low power Ethernet Physical Layer transceiver with integrated PMD sublayers to support 10BASE-Te, 100BASE-TX Ethernet protocols. It supports up to 150 meters reach over CAT5e cable. The DP83825I interfaces directly to twisted pair media via an external transformer. It interfaces to the MAC layer through Reduced MII (RMII) both in Master and Slave mode. It provide 50-MHz output clock in RMII Master Mode. This clock is synchronized to MDI derived clock to reduce the jitter in the system. The DP83825I also supports Energy Efficient Ethernet, Wake-on-LAN and MAC isolation to further lower the system power consumption. Energy Efficient Mode can be enabled through register configuration for legacy MACs not supporting EEE signaling over MAC. DP83825I can operate in un-managed repeater mode. In this mode, DP83825I works as a repeater without register configuration. The DP83825I offers integrated cable diagnostic tools, built-in self-test and loopback capabilities for ease of development and debug.

Ultra Small Form Factor 10/100 Mbps PHY : QFN 3 mm × 3 mm, 24 pin
Cable reach > 150 meters
Very low power consumption < 127 mW
Small system solution : integrated MDI and MAC termination resistors
Programmable energy saving modes
- Active sleep
- Deep power-down
- Energy Efficient Ethernet (EEE) IEEE 802.3az
- EEE support for legacy MAC
- Wake-on-LAN (WoL)
Voltage mode line driver
MAC interface : RMII (master and slave mode)
Single 3.3 V power supply
I/O voltages: 1.8 V and 3.3 V
Repeater : RMII back-to-back mode in unmanaged mode
MDC/MDIO Interface for configuration and status
Fast link drop modes
Diagnostics features
- TDR-based cable diagnostics for open, short
- Built-in packet generator
- Multiple loopbacks
Programmable Hardware interrupt pin
Operating temperature range: –40°C to 85°C
Compliant to IEEE 802.3 100BASE-TX and 10BASE-Te specification

Datarate (Mbps)	10/100
Interface type	RMII (Master and Slave Mode)
Number of ports	Single
Rating	Catalog
Features	Cable diagnostics, EEE, Low power, Single supply, WoL
Supply voltage (V)	3.3
I/O supply voltage (typ) (V)	1.8, 3.3
Operating temperature range (°C)	-40 to 85
Number of LEDs	2
ESD HBM (kV)	4
