Описание

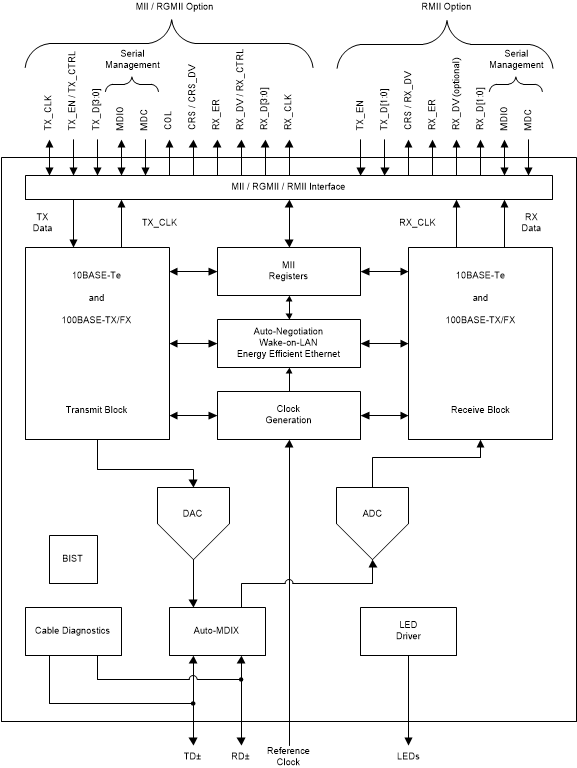

Ideal for harsh industrial environments, the DP83822 is an ultra-robust, low-power single-port 10/100 Mbps Ethernet PHY. It provides all physical layer functions needed to transmit and receive data over standard twisted-pair cables, or connect to an external fiber optic transceiver. Additionally, the DP83822 provides flexibility to connect to a MAC through a standard MII, RMII, or RGMII interface.The DP83822 offers integrated cable diagnostic tools, built-in self-test, and loopback capabilities for ease of use. It supports multiple industrial fieldbuses with its fast link-down detection as well as Auto-MDIX in forced modes.The DP83822 offers an innovative and robust approach for reducing power consumption through EEE, WoL and other programmable energy savings modes.The DP83822 is a feature rich and pin-to-pin upgradeable option for the TLK105, TLK106, TLK105L and TLK106L 10/100 Mbps Ethernet PHYs.The DP83822 comes in a 32-pin 5.00-mm × 5.00-mm VQFN package.

Ultra-robust 10/100Mbs PHY
- IEC 6100-4-2 ESD: +/- 8KV contact discharge
- IEC 6100-4-4 EFT: Class A at 4KV
- CISPR 22 conducted emissions : Class B
- CISPR 22 radiated emissions : Class B
- Operating temperature: -40C to 125C
MAC interfaces: RGMII / RMII / MII
IEEE 802.3u compliant: 100BASE-FX, 100BASE-TX and 10BASE-Te
Flexible supply options
- Low power single supply options
  - 1.8V AVD < 120 mW
  - 3.3-V AVD < 220 mW
- Available I/O voltages : 3.3V/2.5V/1.8V
Power saving features
- Energy efficient Ethernet (EEE) IEEE 802.3az
- WoL (Wake-on-LAN) support with magic packet detection
- Programmable energy savings modes
Start of frame detect for IEEE 1588 time stamp
Diagnostic tools: Cable diagnostics, BIST (Built-in self-test), loopback, rapid link-down detection
Auto-crossover in force modes

Datarate (Mbps)	10/100
Interface type	MII, RGMII, RMII
Number of ports	Single
Rating	Catalog
Features	50-MHz clock out, Cable diagnostics, EEE, Single supply, WoL
Supply voltage (V)	3.3 or 1.8
I/O supply voltage (typ) (V)	1.8, 2.5, 3.3
Operating temperature range (°C)	-40 to 85
Number of LEDs	3
ESD HBM (kV)	8
