Описание

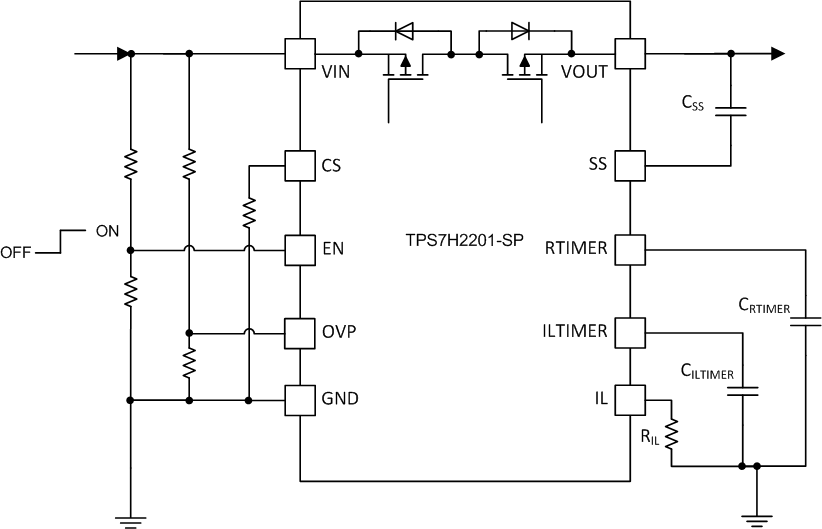

The TPS7H2201-SP is a single channel load switch that provides configurable rise time to minimize inrush current and reverse current protection. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.5 V to 7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (EN), which is capable of interfacing directly with low-voltage control signals. The TPS7H2201-SP is available in a ceramic package with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –55°C to 125°C.

Radiation performance:
- Radiation hardness assurance (RHA) up to TID 100 krad(Si)
- Single event latchup (SEL), single event burnout (SEB), and single event gate rupture (SEGR) immune to LET = 75 MeV-cm²/mg
- SEFI/SET characterized to
  LET = 75 MeV-cm²/mg
Integrated single channel load switch
Input voltage range: 1.5 V to 7 V
Low on-resistance (R_ON) of 35-mΩ maximum at 25°C and VIN = 5 V
6-A maximum continuous switch current
Low control input threshold enables use of
1.2-, 1.8-, 2.5-, and 3.3-V logic
Configurable rise time (soft start)
Reverse current protection
Programmable and internal current limiting
(fast-trip)
Programmable fault timer (current limit and
retry modes)
Thermal shutdown
Ceramic package with thermal pad

Product type	eFuses and hot swap controllers
Rating	Space
Operating temperature range (°C)	-55 to 125, 25 to 25
