Описание

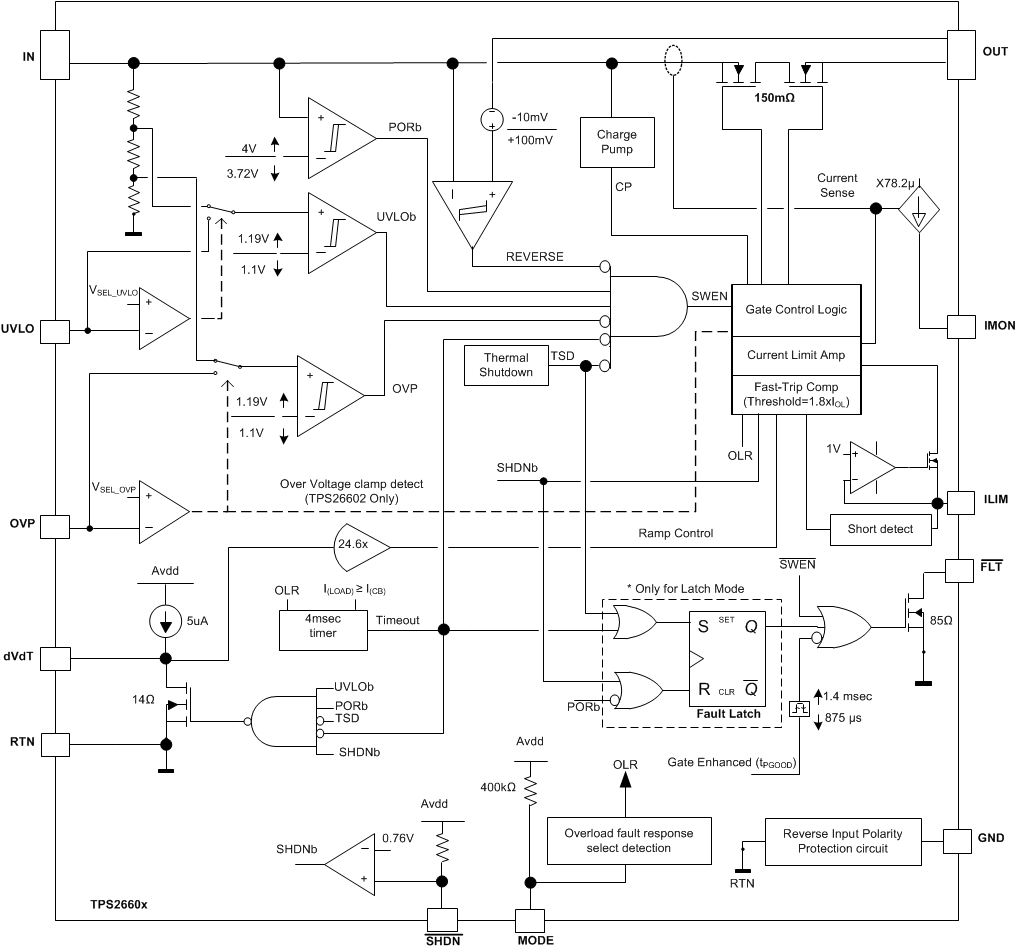

The TPS2660x devices are compact, feature rich high voltage eFuses with a full suite of protection features. The wide supply input range of 4.2 to 60 V allows control of many popular DC bus voltages. The device can withstand and protect the loads from positive and negative supply voltages up to ±60 V. Integrated back to back FETs provide reverse current blocking feature making the device suitable for systems with output voltage holdup requirements during power fail and brownout conditions. Load, source and device protection are provided with many adjustable features including overcurrent, output slew rate and overvoltage, undervoltage thresholds. The internal robust protection control blocks along with the high voltage rating of the TPS2660x helps to simplify the system designs for Surge protection.A shutdown pin provides external control for enabling and disabling the internal FETs as well as placing the device in a low current shutdown mode. For system status monitoring and downstream load control, the device provides fault and precise current monitor output. The MODE pin allows flexibility to configure the device between the three current-limiting fault responses (circuit breaker, latch off, and Auto-retry modes). The devices are available in a 5-mm × 4.4-mm 16-pin HTSSOP as well as 5-mm x 4-mm 24-pin VQFN package and are specified over a –40°C to +125°C temperature range.

4.2-V to 60-V Operating voltage, 62-V absolute maximum
Integrated reverse input polarity protection down to –60 V
- Zero additional components required
Integrated back to back MOSFETs with 150-mΩ total RON
0.1-A to 2.23-A Adjustable current limit
(±5% accuracy at 1 A)
Functional safety capable
- Documentation available to aid functional safety system design
Load protection during Surge (IEC 61000-4-5) with minimum external components
IMON current indicator output (±8.5% accuracy)
Low quiescent current, 300-µA in operating, 20-µA in shutdown
Adjustable UVLO, OVP cut off, output slew rate control
Reverse current blocking
Fixed 38-V overvoltage clamp (TPS26602 only)
Available in easy-to-use 16-Pin HTSSOP and 24-Pin VQFN packages
Selectable current-limiting fault response options (Auto-Retry, Latch Off, Circuit Breaker Modes)
UL 2367 Recognized
- File No. 169910
- R_ILIM ≥ 5.36 kΩ (2.35-A maximum)
UL60950 - Safe during single point failure test
- Open/Short ILIM detection

FET	Internal
Ron (typ) (mΩ)	150
Vin (min) (V)	4.2
Vin (max) (V)	60
Vabsmax_cont (V)	62
Current limit (min) (A)	0.1
Current limit (max) (A)	2.23
Overcurrent response	Circuit breaker, Current limiting
Fault response	Auto-retry, Latch-off
Soft start	Adjustable
Overvoltage response	Clamp, Cut-off
Features	Current monitoring, Fault output, Reverse current blocking always, Reverse polarity protection
UL recognition	IEC62368, UL2367
TI functional safety category	Functional Safety-Capable
Rating	Catalog
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 125
Function	Adjustable current limit, Current monitoring, Inrush current control, Overvoltage protection, Power good signal, Reverse current blocking, Reverse polarity protection, Short circuit protection, Thermal shutdown
