Описание

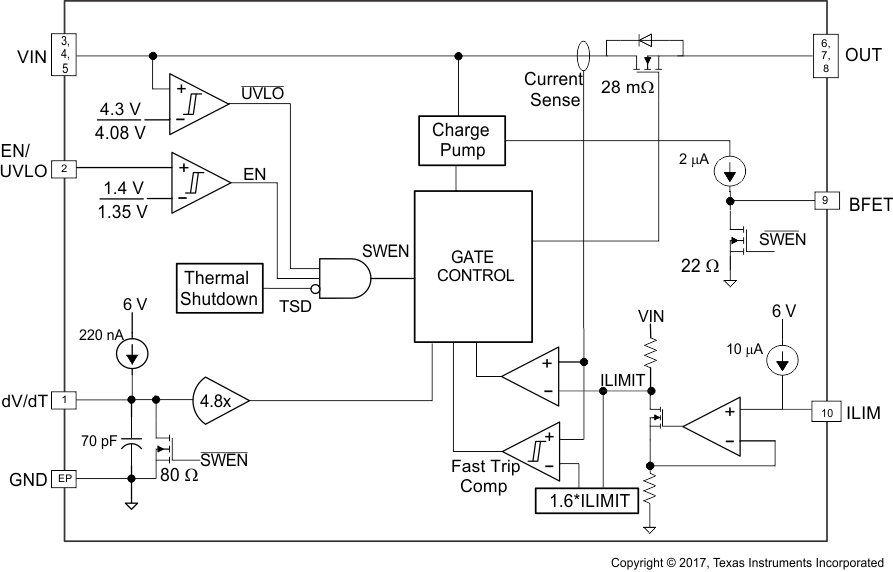

The TPS25927x family of eFuses is a highly integrated circuit protection and power management solution in a tiny package. The devices use few external components and provide multiple protection modes. They are a robust defense against overloads, shorts circuits, excessive inrush current, and reverse current. Current limit level can be set with a single external resistor. Applications with particular voltage ramp requirements can set dV/dT pin with a single capacitor to ensure proper output ramp rates. Many systems, such as SSDs, must not allow holdup capacitance energy to dump back through the FET body diode onto a drooping or shorted input bus. The BFET pin is for such systems. An external NFET can be connected “Back to Back (B2B)” with the TPS25927x output and the gate driven by BFET to prevent current flow from load to source.

4.5-V to 18-V Protection
Integrated 28-mΩ Pass MOSFET
Absolute Maximum Voltage of 20 V
1-A to 5-A Adjustable I_LIMIT
±8% I_LIMIT Accuracy at 3.7A
Reverse Current Blocking Support
Programmable OUT Slew Rate, UVLO
Built-in Thermal Shutdown
UL 2367 Recognized – File No. E339631*
- *RILIM ≤ 130 kΩ (5 A maximum)
Safe During Single Point Failure Test (UL60950)
Small Foot Print – 10L (3 mm x 3 mm) VSON

FET	Internal
Ron (typ) (mΩ)	28
Vin (min) (V)	4.5
Vin (max) (V)	18
Vabsmax_cont (V)	20
Current limit (min) (A)	1
Current limit (max) (A)	5
Overcurrent response	Current limiting
Fault response	Auto-retry, Latch-off
Soft start	Adjustable
Overvoltage response	Cut-off
Features	Reverse current blocking when off
UL recognition	UL2367, UL60950
Rating	Catalog
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 85
Function	Adjustable current limit, Inrush current control, Reverse current blocking, Short circuit protection, Thermal shutdown
