Описание

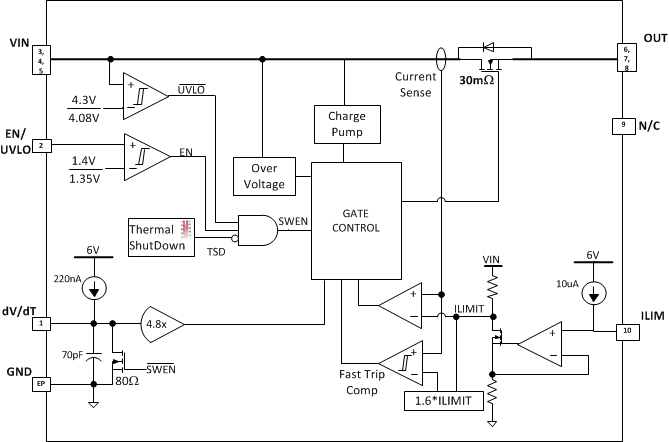

The TPS25925x/6x family of eFuses is a highly integrated circuit protection and power management solution in a tiny package. The devices use few external components and provide multiple protection modes. They are a robust defense against overloads, shorts circuits, voltage surges, excessive inrush current. Current limit level can be set with a single external resistor and current limit set has a typical accuracy of ±15%. Over voltage events are limited by internal clamping circuits to a safe fixed maximum, with no external components required. TPS25926x devices provide over voltage protection (OVP) for 12-V systems and TPS25925x devices for 5-V systems. In cases with particular voltage ramp requirements, a dV/dT pin is provided that can be programmed with a single capacitor to ensure proper output ramp rates.

12-V eFuse – TPS25926x
5-V eFuse – TPS25925x
Integrated 30-mΩ Pass MOSFET
Fixed Over-Voltage Clamp:
- 6.1-V Clamp - TPS25925x
- 15-V Clamp - TPS25926x
2-A to 5-A Adjustable I_LIMIT (±15% Accuracy)
Programmable V_OUT Slew Rate, UVLO
Built-in Thermal Shutdown
UL 2367 Recognized – File No. E339631*
- *R_ILIM ≤ 130 kΩ (5 A maximum)
Safe During Single Point Failure Test (UL60950)
Small Foot Print – 10L (3 mm × 3 mm) VSON

FET	Internal
Ron (typ) (mΩ)	30
Vin (min) (V)	4.5
Vin (max) (V)	13.8
Vabsmax_cont (V)	20
Current limit (min) (A)	2
Current limit (max) (A)	5
Overcurrent response	Current limiting
Fault response	Auto-retry, Latch-off
Soft start	Adjustable
Overvoltage response	Clamp
UL recognition	UL2367, UL60950
Rating	Catalog
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 85
Function	Adjustable current limit, Inrush current control, Overvoltage protection, Short circuit protection, Thermal shutdown
