Описание

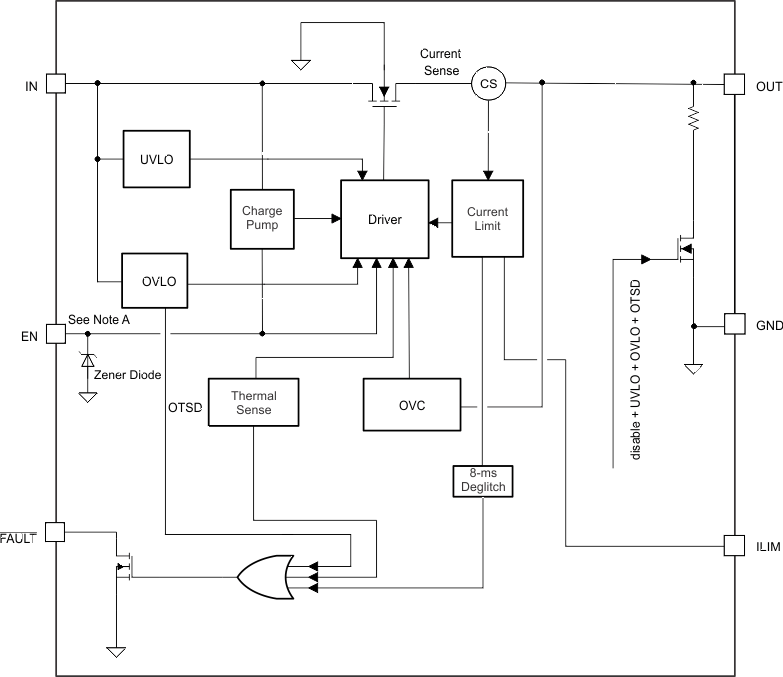

The TPS25200 is a 5-V eFuse with precision current limit and overvoltage clamp. The device provides robust protection for load and source during overvoltage and overcurrent events.The TPS25200 is an intelligent protected load switch with VIN tolerant to 20 V. In the event that an incorrect voltage is applied at IN, the output clamps to 5.4 V to protect the load. If the voltage at IN exceeds 7.6 V, the device disconnects the load to prevent damage to the device and/or load.The TPS25200 has an internal 60-mΩ power switch and is intended for protecting source, device, and load under a variety of abnormal conditions. The device provides up to 2.5 A of continuous load current. Current limit is programmable from 85 mA to 2.9 A with a single resistor to ground. During overload events output current is limited to the level set by RILIM. If a persistent overload occurs the device eventually goes into thermal shutoff to prevent damage to the TPS25200.

2.5-V to 6.5-V operation
Input withstands Up to 20 V
7.6-V input overvoltage shutoff
5.25-V to 5.55-V fixed overvoltage clamp
0.6-µs overvoltage lockout response
3.5-µs short circuit response
Integrated 60-mΩ high-side MOSFET
Up to 2.5 A continuous load current
±6% current-limit accuracy at 2.9 A
Reverse current blocking while disabled
Built-in soft start
Pin-to-pin compatible with TPS2553
UL 2367 recognized
- File no. 169910
- R_ILIM ≥ 33 kΩ (3.12-A maximum)

FET	Internal
Ron (typ) (mΩ)	60
Vin (min) (V)	2.5
Vin (max) (V)	6.5
Vabsmax_cont (V)	20
Current limit (min) (A)	0.085
Current limit (max) (A)	2.9
Overcurrent response	Current limiting
Fault response	Auto-retry
Soft start	Adjustable
Overvoltage response	Clamp
Features	Fault output, Reverse current blocking when off
UL recognition	UL2367
Rating	Catalog
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 125
Function	Adjustable current limit, Overvoltage protection, Reverse current blocking, Short circuit protection, Thermal shutdown
