Описание

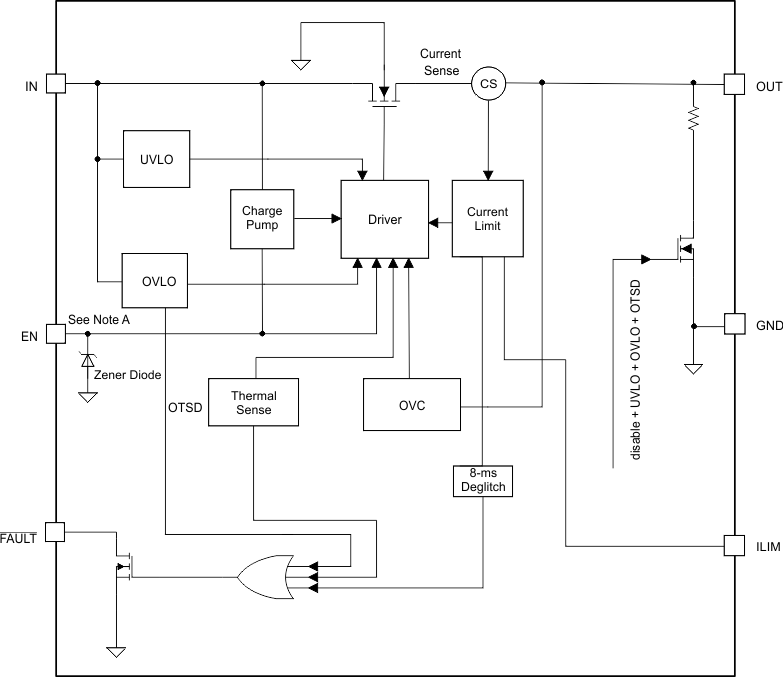

The TPS25200-Q1 device is a 5-V eFuse with a precision current-limit and overvoltage clamp. The device provides robust protection for load and source during overvoltage and overcurrent events. The TPS25200-Q1 device is an intelligent protected load-switch with a VIN value tolerant to 20 V. In the event that an incorrect voltage is applied at the IN pin, the output clamps to 5.4 V to protect the load. If the voltage at the IN pin exceeds 7.6 V, the device disconnects the load to prevent damage to the device, load, or both. The TPS25200-Q1 device has an internal 67-mΩ power switch and is intended for protecting the source, device, and load under a variety of abnormal conditions. The device provides up to 2.4 A of continuous load current. The current-limit is programmable from 85 mA to 2.7 A with a single resistor to ground. During overload events, the output current is limited to the level set by the RILIM resistor. If a persistent overload occurs, the device eventually enters thermal shutoff to prevent damage to the TPS25200-Q1 device.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device HBM Classification Level 2
- Device CDM Classification Level C5
2.5-V to 6.5-V Operation
20-V Continuous V_IN (Absolute Maximum)
7.6-V Input Overvoltage Shutoff
5.25-V to 5.55-V Fixed Overvoltge Clamp
0.6-µs Overvoltage Lockout Response
3.5-µs Short-Circuit Response
67-mΩ High-Side MOSFET
Accurate 2.5-A Minimum, 2.9-A Maximum and
2.1-A Minimum, 2.5-A Maximum Setting (Including
Resistor)
±6.3% Current-Limit Accuracy at 2.7 A
Reverse Current Blocking While Disabled
Built-in Soft Start
Pin-to-Pin Compatible with TPS2553

FET	Internal
Ron (typ) (mΩ)	67
Vin (min) (V)	2.5
Vin (max) (V)	6.5
Vabsmax_cont (V)	20
Current limit (min) (A)	0.085
Current limit (max) (A)	2.7
Overcurrent response	Current limiting
Fault response	Auto-retry
Soft start	Adjustable
Overvoltage response	Clamp
Features	Fault output, Reverse current blocking when off
TI functional safety category	Functional Safety-Capable
Rating	Automotive
Device type	eFuses and hot swap controllers
Operating temperature range (°C)	-40 to 125
Function	Adjustable current limit, Inrush current control, Overvoltage protection, Reverse current blocking, Short circuit protection, Thermal shutdown
