Описание

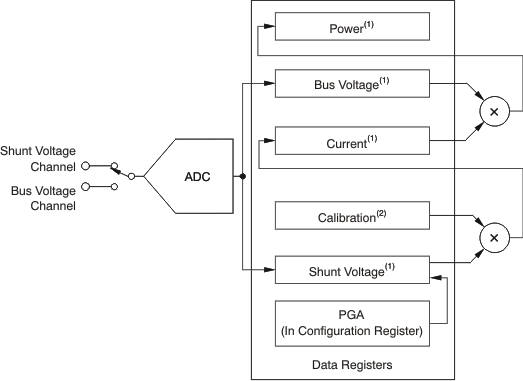

The INA220 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. The INA220 monitors both shunt drop and supply voltage. A programmable calibration value, combined with an internal multiplier, enables direct readouts in amperes. An additional multiplying register calculates power in watts. The I2C- or SMBUS-compatible interface features 16 programmable addresses. The separate shunt input on the INA220 allows it to be used in systems with low-side sensing. The INA220 is available in two grades: A and B. The B grade version has higher accuracy and higher precision specifications. The INA220 senses across shunts on buses that can vary from 0 to 26 V, useful for low-side sensing or CPU power supplies. The device uses a single 3- to 5.5-V supply, drawing a maximum of 1 mA of supply current. The INA220 operates from 40°C to 125°C.

High- or Low-Side Sensing
Senses Bus Voltages from 0 V to 26 V
Reports Current, Voltage, and Power
16 Programmable Addresses
High Accuracy: 0.5% (Maximum) Over
Temperature (INA220B)
User-Programmable Calibration
Fast (2.56-MHz) I²C- or SMBUS-Compatible
Interface
VSSOP-10 Package
APPLICATIONS
- Servers
- Telecom Equipment
- Notebook Computers
- Power Management
- Battery Chargers
- Automotive
- Power Supplies
- Test Equipment

All other trademarks are the property of their respective owners

Common-mode voltage (max) (V)	26
Common-mode voltage (min) (V)	0
Input offset (±) (max) (µV)	50, 100
Input offset drift (±) (max) (µV/°C)	0.16
Input offset drift (±) (typ) (µV/°C)	0.16
Voltage gain (V/V)	0.125, 0.25, 0.5, 1
CMRR (min) (dB)	120
Bandwidth (kHz)	5.5
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	3
Iq (max) (mA)	1
Digital interface	I2C, SMBus
Gain error (%)	0.3, 0.5
Gain error drift (±) (max) (ppm/°C)	83
Features	Bi-directional, Integrated Power Monitor, Low-side Capable, Programmable Gain
Number of channels	1
Resolution (Bits)	12
Power measurement accuracy (%)	1
Rating	Catalog
Operating temperature range (°C)	-40 to 125
