Описание

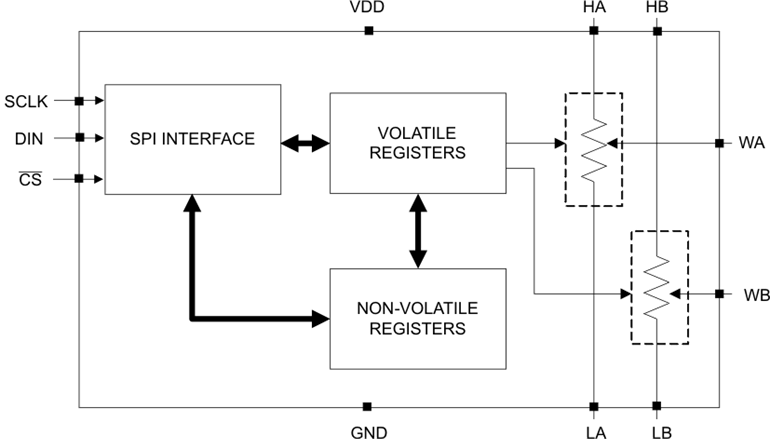

The TPL0202 has two linear-taper digital potentiometers (DPOTs) with 256 wiper positions. Each potentiometer can be used as a three-terminal potentiometer or as a two-terminal rheostat. The TPL0202-10 has an end-to-end resistance of 10 kΩ. This DPOT can be used as a mechanical potentiometer replacement, allowing the user (or software) to digitally control and adjust resistance. The TPL0202 has non-volatile memory (EEPROM) which can be used to store the wiper position for automatic recall upon power-up. The internal registers of the TPL0202 can be accessed using a SPI-compatible digital interface.

Two Potentiometers With 256-Position Resolution
Non-Volatile Memory Stores Wiper Settings
10-kΩ End-to-End Resistance (TPL0202-10)
Fast Power-Up Response Time: <100 µs
±1 LSB INL, ±0.5 LSB DNL (Voltage-Divider Mode)
12 ppm/°C Ratiometric Temperature Coefficient
SPI Serial Interface
2.7 to 5.5 V Single-Supply Operation
Operating Temperature Range From –40°C to +105°C

Number of steps	256
Number of channels	2
End-to-end resistance (typ) (Ω)	10000
Resistance taper	Linear
End-to-end resistance tolerance (max) (%)	20
Interface type	SPI
Memory	Non-Volatile
Bandwidth (MHz)	2
Temp coeff (typ) (ppm/°C)	132
Wiper resistance (typ) (Ω)	25
Operating temperature range (°C)	-40 to 105
Rating	Catalog
