Описание

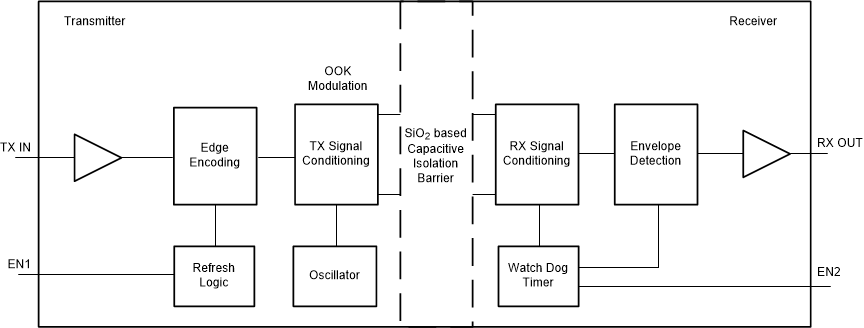

The ISO7041 device is an ultra-low power, multichannel digital isolator that can be used to isolate CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. Innovative edge based architecture combined with an ON-OFF keying modulation scheme allows these isolators to consume very-low power while meeting 3000-VRMS isolation rating per UL1577. The per channel dynamic current consumption of the device is under 120 µA/Mbps and the per channel static current consumption is 3.5 µA at 3.3 V, allowing for use of the ISO7041 in both power and thermal constrained system designs. The device can operate as low as 1.71 V, as high as 5.5 V , and is fully functional with different supply voltages on each side of isolation barrier. The four channel isolator comes in a 16-QSOP package with three forward-direction channels and one reverse-direction channel. The device has default output high and low options. If the input power or signal is lost, default output is high for the ISO7041 device without the suffix F and low for the ISO7041F device with the F suffix. See the Device Functional Modes section for more information.

Ultra-low power consumption
- 3.5 µA per channel quiescent current (3.3 V)
- 15 µA per channel at 100 kbps (3.3 V)
- 116 µA per channel at 1 Mbps (3.3 V)
Robust isolation barrier
- >100-year projected lifetime
- 3000 V_RMS isolation rating
- ±100 kV/µs typical CMTI
Wide supply range: 1.71 V to 1.89 V and 2.25 V to 5.5 V
Wide temperature range:
- 1.71 V to 1.89 V: –55°C to +105°C
- 2.25 V to 5.5 V: –55°C to +125°C
Small 16-QSOP package (16-DBQ)
Signaling rate: Up to 4 Mbps
Default output High (ISO7041) and Low (ISO7041F) options
Robust electromagnetic compatibility (EMC)
- System-level ESD, EFT, and surge immunity
- ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
- Very low emissions
Safety-related certifications :
- UL 1577 Component Recognition Program
- DIN VDE V 0884-11
- CQC, TUV and CSA
- IECEx (IEC 60079-0 & IEC 60079-11) and ATEX (EN 60079-0 & EN 60079-11)

Integrated isolated power	No
Number of channels	4
Forward/reverse channels	3 forward / 1 reverse
Data rate (max) (MBits)	4
Rating	Catalog
Current consumption per channel (DC) (typ) (mA)	0.0042
Current consumption per channel (1 Mbps) (typ) (mA)	0.116
Operating temperature range (°C)	-55 to 125
Default output	High, Low
Supply voltage (max) (V)	5.5
Supply voltage (min) (V)	1.71
Propagation delay time (typ) (µs)	0.14
CMTI (min) (V/µs)	50000
Isolation rating	Basic
Surge isolation voltage (VIOSM) (VPK)	6400
Transient isolation voltage (VIOTM) (VPK)	4242
Withstand isolation voltage (VISO) (Vrms)	3000
Creepage (min) (m)	0.0037
Clearance (min) (m)	0.0037
