Описание

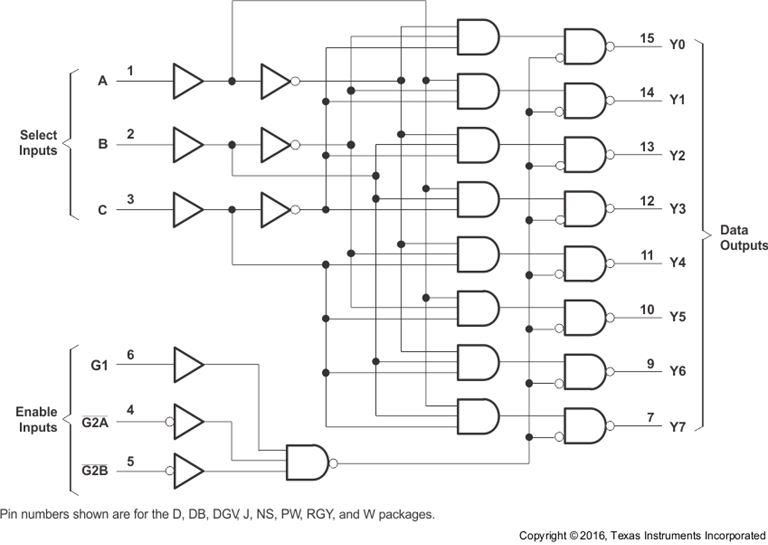

The SN74LVC138A devices are designed for high-performance memory-decoding or data-routing applications requiring very short propagation delay times. In high-performance memory systems, these decoders minimize the effects of system decoding. When employed with high-speed memories using a fast enable circuit, delay times of these decoders and the enable time of the memory usually are less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible.

Operate From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max t_pd of 5.8 ns at 3.3 V
Typical V_OLP (Output Ground Bounce) < 0.8 V at V_CC = 3.3 V, T_A = 25°C
Typical V_OHV (Output V_OH Undershoot) > 2 V at V_CC = 3.3 V, T_A = 25°C
Latch-Up Performance Exceeds 250 mA Per JESD 17

Technology family	LVC
Number of channels	1
Operating temperature range (°C)	-55 to 125
Rating	Space
Supply current (max) (µA)	10
