Описание

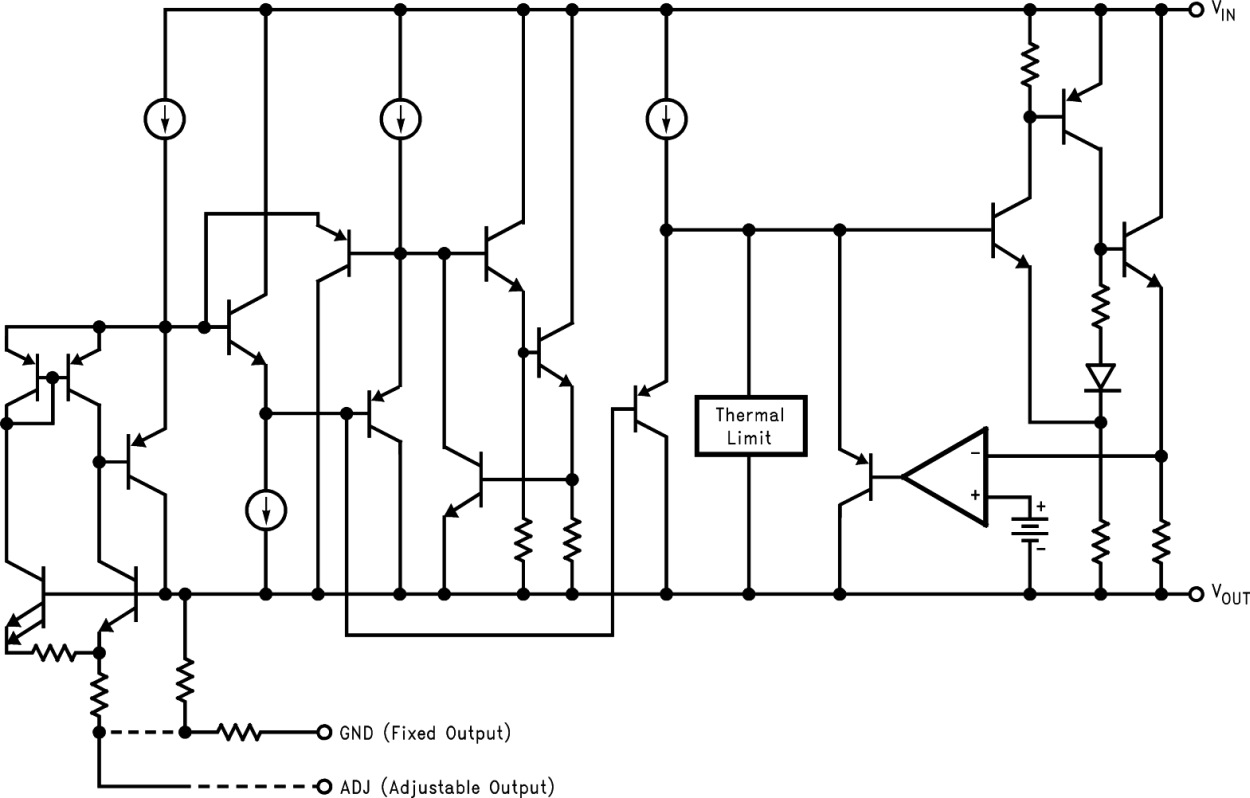

The LM1086-MIL is a regulator with a maximum dropout of 1.5 V at 1.5 A of load current. The device has the same pin-out as TIs industry standard LM317.Two resistors are required to set the output voltage of the adjustable output voltage version of the LM1086-MIL. Fixed output voltage versions integrate the adjust resistors. Typically, no input capacitor is needed unless the device is situated more than 6 inches from the input filter capacitors. Output capacitor can be replaced with ceramic and appropriate ESR. The LM1086-MIL circuit includes a zener trimmed bandgap reference, current limiting, and thermal shutdown. Because the LM1086-MIL regulator is floating and detects only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input-to-output differential is not exceeded. Exceeding the maximum input-to-output deferential will result in short-circuiting the output. By connecting a fixed resistor between the adjustment pin and output, the LM1086-MIL can be also used as a precision current regulator.For applications requiring greater output current, refer to LM1084 for the 5-A version, and the LM1085 for the 3-A version.

Available in Fixed 1.8-V, 2.5-V, 3.3-V, 5-V Versions
Available in Adjustable Version
Current Limiting and Thermal Protection
2% Output Accuracy
Output Current 1.5 A
Line Regulation 0.015% (Typical)
Load Regulation 0.1% (Typical)
Maximum Input Voltage up to 29 V
Minimum Adjustable Output Voltage
Down to 1.25 V
Stable with Ceramic Output Capacitor with ESR
Temperature Range : –40°C to +125°C

Product type	Power Management
Die or wafer type	Tested Die
Rating	Military
Operating temperature range (°C)	-40 to 85
