Описание

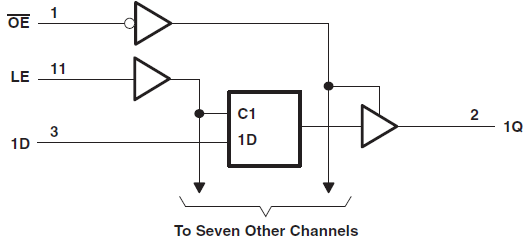

The SN74LV373A-Q1 device is an octal transparent D-type latch designed for 2 V to 5.5 V V CC operation. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs.

Qualified for automotive applications
V CC operation of 2 V to 5.5 V
Maximum tpd of 8.5 ns at 5 V
Typical V OHV (Output V OH Undershoot) > 2.3 V at V CC = 3.3 V, TA = 25°C
Supports mixed-mode voltage operation on all ports
I off supports partial-power-down mode operation
Latch-up performance exceeds 250 mA per JESD 17

Number of channels	8
Technology family	LV-A
Supply voltage (min) (V)	2
Supply voltage (max) (V)	5.5
Input type	Standard CMOS
Output type	3-State
Clock frequency (max) (MHz)	70
IOL (max) (mA)	16
IOH (max) (mA)	-16
Supply current (max) (µA)	20
Features	Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs, Partial power down (Ioff)
Operating temperature range (°C)	-40 to 85
Rating	Automotive
