Описание

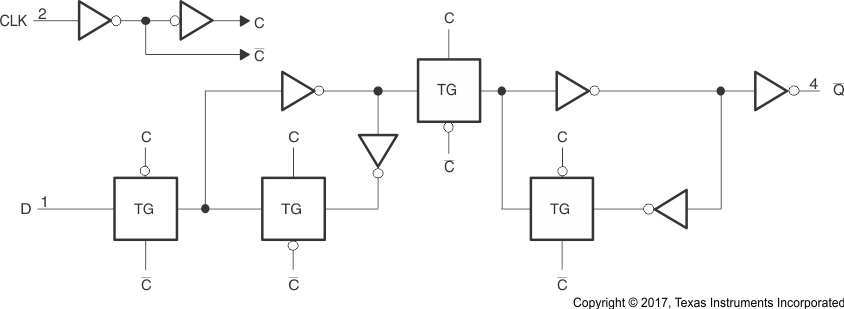

The SN74LVC1G80-Q1 device is an automotive AEC-Q100 qualified, single positive-edge-triggered D-type flip-flop that is designed for 1.65-V to 5.5-V VCC operation.When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- ±4000-V Human-Body Model (HBM) ESD Classification Level 3A
- ±1000-V Charged-Device Model (CDM) ESD Classification Level C5
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Supports Down Translation to V_CC
Maximum t_pd of 6 ns at 3.3 V
Low Power Consumption, 10-µA Max I_CC
±24-mA Output Drive at 3.3 V
I_off supports Partial-Power-Down Mode and Back-Drive Protection

Number of channels	1
Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Input type	Standard CMOS
Output type	Push-Pull
Clock frequency (max) (MHz)	150
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Features	Balanced outputs, Over-voltage tolerant inputs
Operating temperature range (°C)	-40 to 125
Rating	Automotive
