Описание

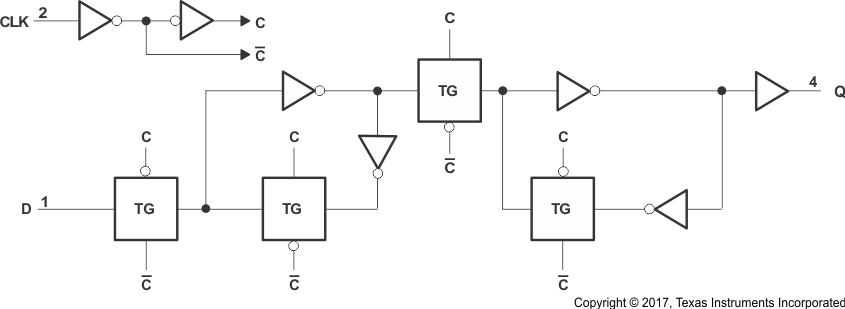

This automotive AEC-Q100 qualified single positive-edge-triggered D-type flip-flop is designed for 1.65-V to 5.5-V VCC operation.When data at the data (D) input meets the setup time requirement, the data is transferred to the Q output on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the level at the output.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- ±4000-V Human-Body Model (HBM) ESD Classification Level 3A
- ±1000-V Charged-Device Model (CDM) ESD Classification Level C5
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Supports Down Translation to V_CC
Max t_pd of 6 ns at 3.3 V and 50 pF load
Low Power Consumption, 10-µA Max I_CC
±24-mA Output Drive at 3.3 V
I_off supports Partial-Power-Down Mode and Back-Drive Protection

Number of channels	1
Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Input type	Standard CMOS
Output type	Push-Pull
Clock frequency (max) (MHz)	150
IOL (max) (mA)	32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Features	Balanced outputs
Operating temperature range (°C)	-40 to 125
Rating	Automotive
