Описание

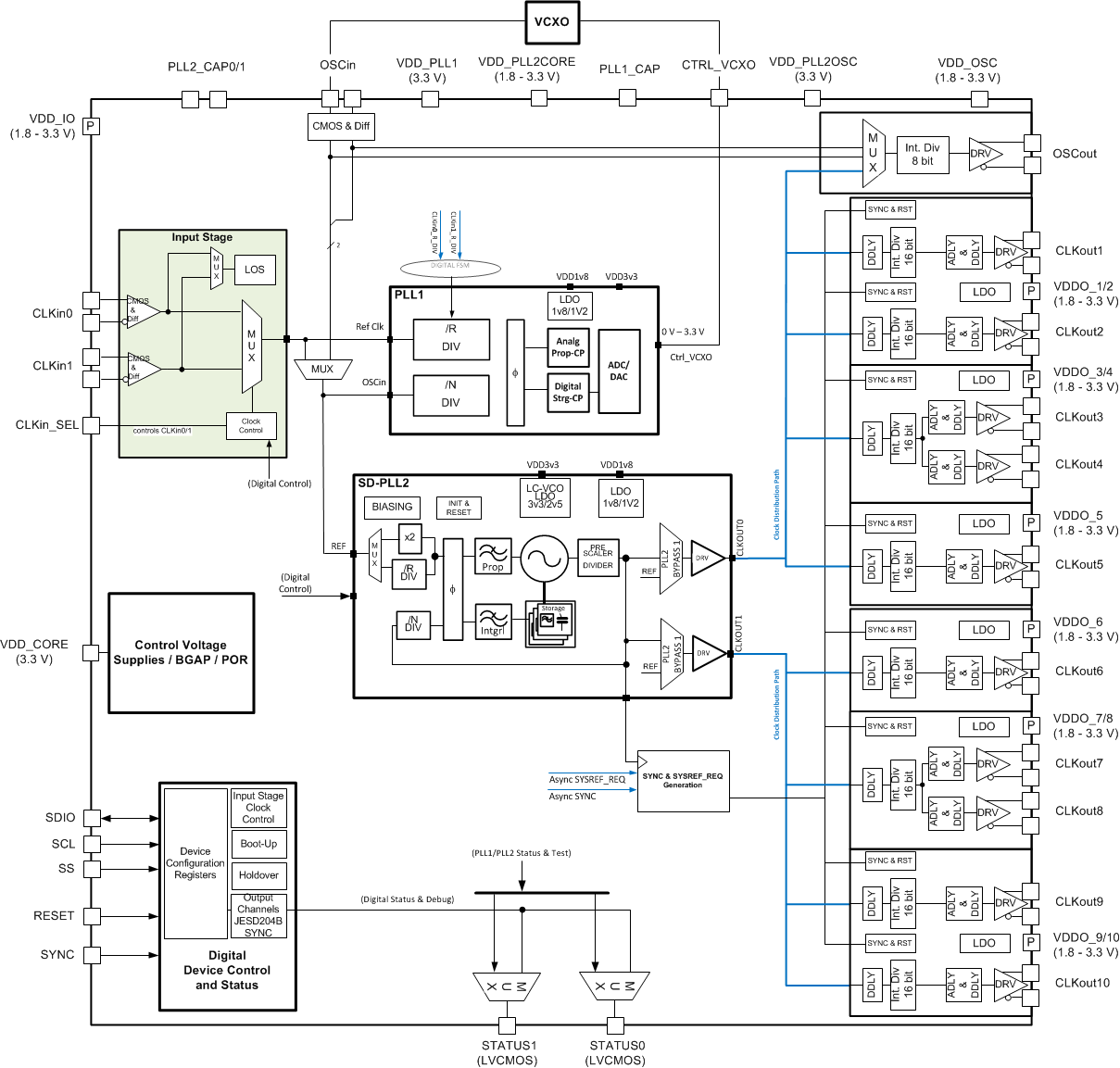

The LMK0461x device family is the industrys highest performance and lowest power jitter cleaner with JESD204B support.

Dual-loop PLL architecture
Ultra low noise (10 kHz to 20 MHz):
- 48-fs RMS jitter at 1966.08 MHz
- 50-fs RMS jitter at 983.04 MHz
- 61-fs RMS jitter at 122.88 MHz
–165-dBc/Hz noise floor at 122.88 MHz
JESD204B support
- Single shot, pulsed, and continuous SYSREF
10 differential output clocks in 8 frequency groups
- Programmable output swing between 700 mVpp to 1600 mVpp
- Each output pair can be configured to SYSREF clock output
- 16-bit channel divider
- Minimum SYSREF frequency of 25 kHz
- Maximum output frequency of 2 GHz
- Precision digital delay, dynamically adjustable
  - Digital delay (DDLY) of ½ × clock distribution path frequency (2 GHz maximum)
- 60-ps step analog delay
- 50% duty cycle output divides, 1 to 65535
  (even and odd)
Two reference inputs
- Holdover mode, when inputs are lost
- Automatic and manual switch-over modes
- Loss-of-signal (LOS) detection
0.88-W typical power consumption with 10 outputs active
Operates typically from a 1.8-V (outputs, inputs) and 3.3-V supply (digital, PLL1, PLL2_OSC, PLL2 core)
Fully integrated programmable loop filter
PLL2
- PLL2 phase detector rate up to 250 MHz
- OSCin frequency-doubler
- Integrated low-noise VCO
Internal power conditioning: better than –80 dBc PSRR on VDDO for 122.88-MHz differential outputs
3- or 4-wire SPI interface (4-wire is default)
–40ºC to +85ºC industrial ambient temperature
Supports 105ºC PCB temperature (measured at thermal pad)
LMK04610: 8-mm × 8-mm VQFN-56 package with 0.5-mm pitch

Function	Dual-loop PLL
Number of outputs	10
RMS jitter (fs)	65
Output frequency (min) (MHz)	0.03
Output frequency (max) (MHz)	2000
Input type	LVCMOS, LVDS, LVPECL
Output type	LVDS, LVPECL
Supply voltage (min) (V)	1.7
Supply voltage (max) (V)	3.465
Features	JESD204B
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Number of input channels	2
