Описание

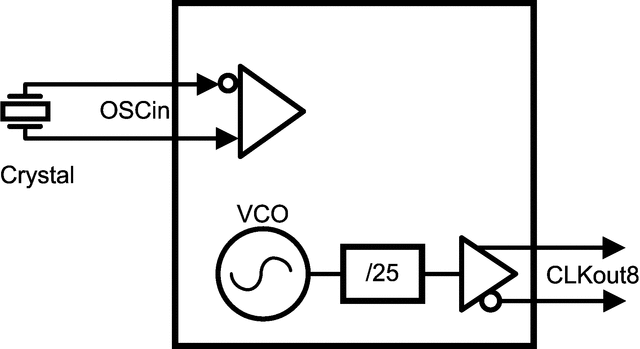

The LMK03806 device is a high-performance, ultra low-jitter, multi-rate clock generator capable of synthesizing 8 different frequencies on 14 outputs at frequencies of up to 2.6 GHz. Each output clock is programmable in LVDS, LVPECL or LVCMOS format. The LMK03806 integrates a high-performance integer-N PLL, low-noise VCO, and programmable output dividers to generate multiple reference clocks for SONET, Ethernet, Fiber Channel, XAUI, Backplane, PCIe, SATA, and Network Processors from a low-cost crystal.

High Performance, Ultra Low Jitter Clock Generator
Low Jitter
- < 50-fs Jitter (1.875 MHz – 20 MHz) at 312.5-MHz Output Frequency
- < 150-fs Jitter (12 kHz – 20 MHz) at 312.5-MHz Output Frequency
Generates Multiple Clocks from a Low-Cost Crystal or External Clock.
14 Outputs With Programmable Output Format (LVDS, LVPECL, CMOS)
Up to 8 Unique Output Frequencies.
Industrial Temperature Range: –40 to 85 °C
Tunable VCO Frequency from 2.37 – 2.6 GHz
Programmable Dividers to Generate Multiple Clocks from a Low Cost Crystal.
3.15-V to 3.45-V Operation

Function	Ultra-low jitter clock generator
Number of outputs	14
Output frequency (max) (MHz)	2600
Core supply voltage (V)	3.3
Output supply voltage (V)	3.3
Input type	LVCMOS, LVDS, LVPECL, XTAL
Output type	LVCMOS, LVDS, LVPECL
Operating temperature range (°C)	-40 to 85
Features	uWire
Rating	Catalog
