Описание

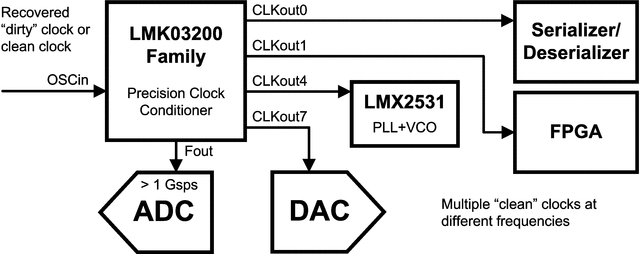

The LMK03200 family of precision clock conditioners combine the functions of jitter cleaning/reconditioning, multiplication, and 0-delay distribution of a reference clock. The devices integrate a Voltage Controlled Oscillator (VCO), a high performance Integer-N Phase Locked Loop (PLL), a partially integrated loop filter, and up to eight outputs in various LVDS and LVPECL combinations. The VCO output is optionally accessible on the Fout port. Internally, the VCO output goes through a VCO divider to feed the various clock distribution blocks. Each clock distribution block includes a programmable divider, a phase synchronization circuit, a programmable delay, a clock output mux, and an LVDS or LVPECL output buffer. The PLL also features delay blocks to permit global phase adjustment of clock output phase. This allows multiple integer-related and phase-adjusted copies of the reference to be distributed to eight system components. The clock conditioners come in a 48-pin WQFN package and are footprint compatible with other clocking devices in the same family.

Integrated VCO with Very Low Phase Noise Floor
Integrated Integer-N PLL with Outstanding Normalized Phase Noise Contribution of -224 dBc/Hz
VCO Divider Values of 2 to 8 (All Divides)
- Bypassable with VCO Mux When Not in 0-delay Mode
Channel Divider Values of 1, 2 to 510 (Even Divides)
LVDS and LVPECL Clock Outputs
Partially Integrated Loop Filter
Dedicated Divider and Delay Blocks on Each Clock Output
0-delay Outputs
Internal or External Feedback of Output Clock
Delay Blocks on N and R Phase Detector Inputs for Lead/Lag Global Skew Adjust
Pin Compatible Family of Clocking Devices
3.15 to 3.45 V Operation
Package: 48 Pin WQFN (7.0 x 7.0 x 0.8 mm)
200 fs RMS Clock Generator Performance (10 Hz to 20 MHz) with a clean input clock

All trademarks are the property of their respective owners.

Function	Clock generator
Number of outputs	9
Output frequency (max) (MHz)	1296
Core supply voltage (V)	3.3
Output supply voltage (V)	3.3
Input type	LVCMOS, LVPECL
Output type	LVDS, LVPECL
Operating temperature range (°C)	-40 to 85
Features	Integrated VCO, uWire
Rating	Catalog
