Описание

The LMK02002 precision clock conditioner combines the functions of jitter cleaning/reconditioning, multiplication, and distribution of a reference clock. The device integrates a high performance Integer-N Phase Locked Loop (PLL), and four LVPECL clock output distribution blocks. Each clock distribution block includes a programmable divider, a phase synchronization circuit, a programmable delay, a clock output mux, and an LVPECL output buffer. This allows multiple integer-related and phase-adjusted copies of the reference to be distributed to eight system components. The clock conditioner comes in a 48-pin LLP package and is footprint compatible with other clocking devices in the same family.

20 fs additive jitter

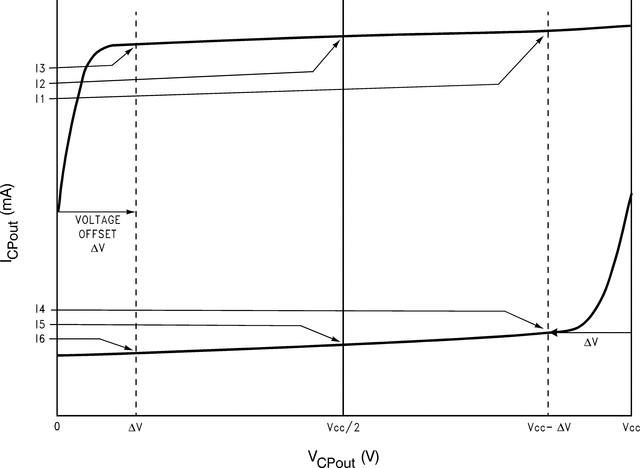

Integrated Integer-N PLL with outstanding normalized phase noise contribution of -224 dBc/Hz

Clock output frequency range of 1 to 800 MHz

4 LVPECL clock outputs

Dedicated divider and delay blocks on each clock output

Pin compatible family of clocking devices

3.15 to 3.45 V operation

Package: 48 pin LLP (7.0 x 7.0 x 0.8 mm)

Target Applications

Data Converter Clocking

Networking, SONET/SDH, DSLAM

Wireless Infrastructure

Medical

Test and Measurement

Military / Aerospace

Function	Clock generator
Number of outputs	4
Output frequency (max) (MHz)	800
Core supply voltage (V)	3.3
Output supply voltage (V)	3.3
Input type	LVCMOS, LVPECL
Output type	LVPECL
Operating temperature range (°C)	-40 to 85
Features	Integrated integer-N PLL, uWire
Rating	Catalog
