Описание

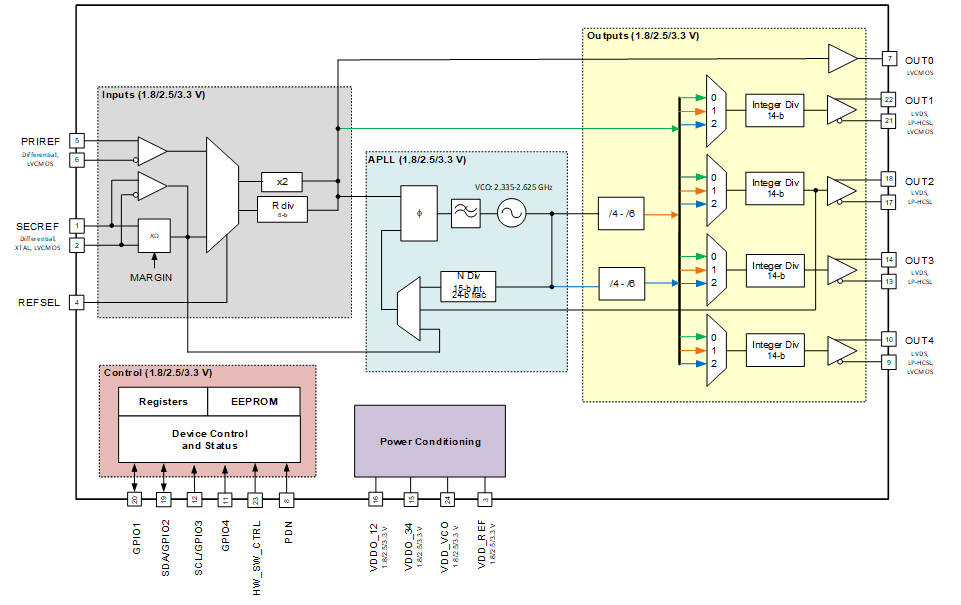

The CDCE6214-Q1 is a four-channel, ultra-low power, medium grade jitter, clock generator for automotive application that can generate five independent clock outputs selectable between various modes of drivers. The input source could be a single-ended or differential input clock source, or a crystal. The CDCE6214-Q1 features a frac-N PLL to synthesize unrelated base frequency from any input frequency. The CDCE6214-Q1 can be configured through the I2C interface. In the absence of the serial interface, the GPIO pins can be used in Pin Mode to configure the product into distinctive configurations.

AEC-Q100 qualified for automotive applications
- Temperature grade 2: –40°C to +105°C
Functional Safety-Capable
- Documentation available to aid functional safety system design
Configurable high performance, low-power, frac-N PLL with RMS jitter with spurs (12 kHz – 20 MHz, F_out > 100 MHz) as:
- Integer mode:
  - Differential output: 350 fs typical, 600 fs maximum
  - LVCMOS output: 1.05 ps typical, 1.5 ps maximum
- Fractional mode:
  - Differential output: 1.7 ps typical, 2.1 ps maximum
  - LVCMOS output: 2.0 ps typical, 4.0 ps maximum
Supports PCIe Gen1/2/3/4 with SSC and Gen 1/2/3/4/5 without SSC
2.335-GHz to 2.625-GHz internal VCO
Typical power consumption: 65 mA for 4-output channel, 23 mA for 1-output channel.
Universal clock input, two reference inputs for redundancy
- Differential AC-coupled or LVCMOS: 10 MHz to 200 MHz
- Crystal: 10 MHz to 50 MHz
Flexible output clock distribution
- 4 channel dividers: Up to 5 unique output frequencies from 24 kHz to 328.125 MHz
- Combination of LVDS-like, LP-HCSL or LVCMOS outputs on OUT0 – OUT4 pins
- Glitchless output divider switching and output channel synchronization
- Individual output enable through GPIO and register
Frequency margining options
- DCO mode: frequency increment/decrement with 10ppb or less step-size
Fully-integrated, configurable loop bandwidth: 100 kHz to 1.6 MHz
Single or mixed supply for level translation: 1.8 V/2.5 V/3.3 V
Configurable GPIOs and flexible configuration options
- I²C-compatible interface: up to 400 kHz
- Integrated EEPROM with two pages and external select pin. In-situ programming allowed.
Supports 100-Ω systems
Low electromagnetic emissions
Small footprint: 24-pin VQFN (4 mm × 4 mm)

Function	Clock generator
Number of outputs	4
Output frequency (max) (MHz)	328.125
Core supply voltage (V)	1.8, 2.5, 3.3
Output supply voltage (V)	1.8, 2.5, 3.3
Input type	Differential, LVCMOS, XTAL
Output type	HCSL, LVCMOS, LVDS
Operating temperature range (°C)	-40 to 105
TI functional safety category	Functional Safety-Capable
Features	Integrated EEPROM, Pin programmable, Serial interface
Rating	Automotive
