Описание

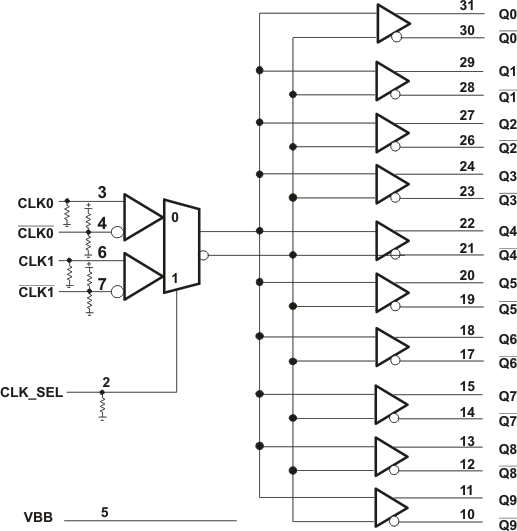

The CDCLVP111-SP clock driver distributes one differential clock pair of LVPECL input, (CLK0, CLK1) to ten pairs of differential LVPECL clock (Q0, Q9) outputs with minimum skew for clock distribution. The CDCLVP111-SP can accept two clock sources into an input multiplexer. The CDCLVP111-SP is specifically designed for driving 50-Ω transmission lines. When an output pin is not used, leaving it open is recommended to reduce power consumption. If only one of the output pins from a differential pair is used, the other output pin must be identically terminated to 50 Ω. The VBB reference voltage output is used if single-ended input operation is required. In this case, the VBB pin should be connected to CLK0 and bypassed to GND via a 10-nF capacitor. For high-speed performance, the differential mode is strongly recommended. The CDCLVP111-SP is characterized for operation from –55°C to 125°C.

Distributes One Differential Clock Input Pair LVPECL to 10 Differential LVPECL
Fully Compatible With LVECL and LVPECL
Supports a Wide Supply Voltage Range From 2.375 V to 3.8 V
Selectable Clock Input Through CLK_SEL
Low-Output Skew (Typical 15 ps) for Clock-Distribution Applications
- Additive Jitter Less Than 1 ps
- Propagation Delay Less Than 355 ps
- Open Input Default State
- LVDS, CML, SSTL input Compatible
V_BB Reference Voltage Output for Single-Ended Clocking
Frequency Range From DC to 3.5 GHz
Supports Defense, Aerospace, and Medical Applications
- Controlled Baseline
- One Assembly and Test Site
- One Fabrication Site
- Available in Military (–55°C to 125°C) Temperature Range⁽¹⁾
- Extended Product Life Cycle
- Extended Product-Change Notification
- Product Traceability

Function	Differential
Additive RMS jitter (typ) (fs)	40
Output frequency (max) (MHz)	3500
Number of outputs	10
Output supply voltage (V)	3.3
Core supply voltage (V)	3.3
Output skew (ps)	50
Features	1:10 fanout
Operating temperature range (°C)	-55 to 125, 25 to 25
Rating	Space
Output type	LVPECL
Input type	CML, LVDS, LVPECL, SSTL
