Описание

The CDC1104 is a 1 to 4 configurable clock buffer. The device accepts an input reference clock and creates 4 buffered output clocks with an output frequency equal to one half the input clock frequency. Four control inputs, S1, S2, S3, S4 configurable phases of the clock outputs.

Input Reference Clock 120Hz–240Hz
Output Clock (Fin/2) 60Hz–120Hz
Output Buffer Drive Strength: 8mA
4 Clock Outputs
4 Control Pins Select Phases of Clock Outputs
Supply Voltage: 3.8V–5.5V
Operating Temperature Range: –40°C to 85°C
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-B)
- 500-V Charged-Device Model (C101)
Package Offerings

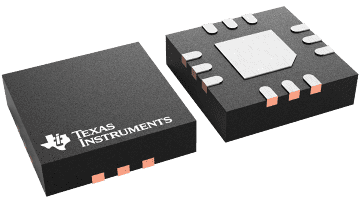

- 12-pin QFN (3mm x 3mm)

Function	Single-ended
Output frequency (max) (MHz)	0.00012
Number of outputs	4
Output supply voltage (V)	5
Core supply voltage (V)	5
Output skew (ps)	10000
Features	1:4 fanout
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Output type	TTL
Input type	TTL
