CAB4A Texas instruments

CAB4A

Уточнить цену

CAB4A

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

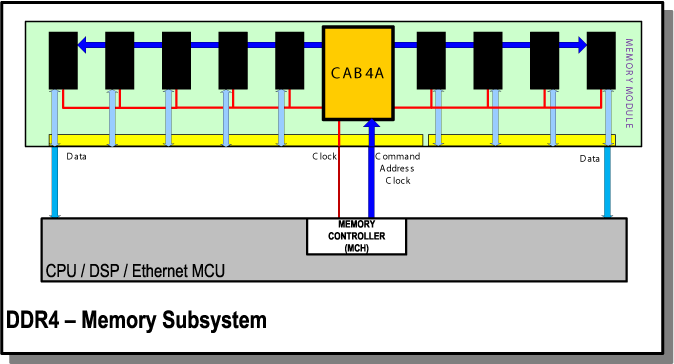

The CAB4 is 32-bit 1:2 Command/Address/Control Buffer and 1:4 differential Clock Buffer designed for operation on DDR4 registered DIMMs with a 1.2 V VDD mode. All inputs are pseudo-differential using external or internal voltage reference. All outputs are full swing CMOS drivers optimized to drive 15 to 50 Ω effective terminated traces in DDR4 RDIMM, LRDIMM and 3D-Stacked DIMM applications. The clock outputs, command/address outputs, control outputs, data buffer control outputs can be enabled in groups, and independently driven with different strengths to compensate for different DIMM net topologies. The DDR4 Register operates from a differential clock (CK_t and CK_c). Inputs are registered at the crossing of CK_t going HIGH, and CK_c going LOW. The input signals could be either re-driven to the outputs if one of the input signals DCS[n:0]_n is driven LOW or it could be used to access device internal control registers when certain input conditions are met. The device is characterized in the operating temperature range from 40°C to 95°C.

DDR4RCD01 JEDEC Compliant
DDR4 RDIMM and LRDIMM up to
DDR4-2400
32 Bits 1-to-2 Register Outputs
1-to-4 Differential Clock Buffer
1.2V Operation
PLL with Internal Feedback
Configurable Driver Strength
Scalable Weak Driver
Programmable Latency
Output Driver Calibration
Address Mirroring and Inversion
DDR4 Full-Parity Operation
On-Chip Programmable V_REF Generation
CA Bus Training Mode
I²C Interface Support
Up to 16-Logical Ranks Support
for 3DS RDIMMs
and LRDIMMs
Up to 4 Physical Ranks Support
for RDIMMs and
LRDIMMs

All trademarks are the property of their respective owners.

Function	Memory interface
Output frequency (max) (MHz)	1200
Number of outputs	68
Output supply voltage (V)	1.2
Core supply voltage (V)	1.2
Features	DDR2 register
Operating temperature range (°C)	-40 to 95
Rating	Catalog
Output type	CMOS
Input type	CMOS
