Описание

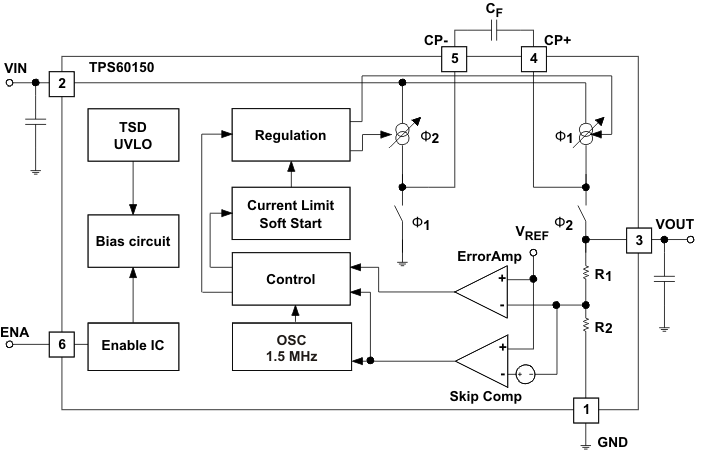

The TPS60150 device is a switched capacitor voltage converter that produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage. The 5-V output can supply a minimum of 140-mA current. The TPS60150 device operates in skip mode when the load current falls less than 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 µA. Only 3 external capacitors are needed to generate the output voltage, therefore saving PCB space. Inrush current is limited by the soft-start function during power on and power transient states. The TPS60150 device operates over a free-air temperature range of –40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN).

2.7-V to 5.5-V Input Voltage Range
Fixed Output Voltage of 5 V
Maximum Output Current: 140 mA
1.5-MHz Switching Frequency
Typical 90-µA Quiescent Current at No Load
Condition (Skip Mode)
X2 Charge Pump
Hardware Enable and Disable Function
Built-in Soft Start
Built-in Undervoltage Lockout Protection
Thermal and Overcurrent Protection
Available in a 2-mm × 2-mm 6-Pin SON Package
with 0.8-mm Height

Vin (min) (V)	2.7
Vin (max) (V)	5.5
Vout (min) (V)	5
Vout (max) (V)	5
Iout (max) (A)	0.14
Regulated outputs (#)	1
Switching frequency (min) (kHz)	1500
Switching frequency (max) (kHz)	1500
Iq (typ) (mA)	0.08
Features	Enable
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Type	Charge pump
