Описание

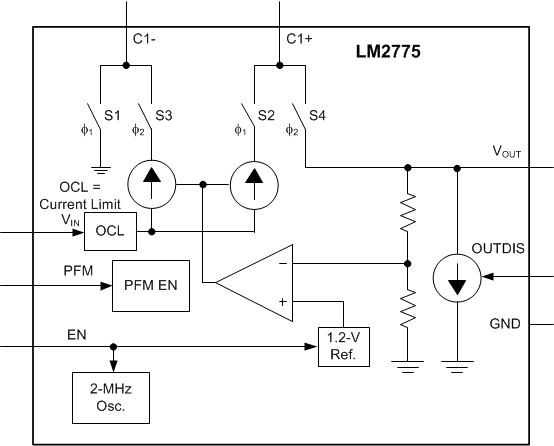

The LM2775 is a regulated switched-capacitor doubler that produces a low-noise output voltage. The LM2775 can supply up to 200 mA of output current over a 3.1-V to 5.5-V input range, as well as up to 125 mA of output current when the input voltage is as low as 2.7 V. At low output currents, the LM2775 can reduce its quiescent current by operating in a pulse frequency modulation (PFM) mode. PFM mode can be enabled or disabled by driving the PFM pin to high or low. Additionally, when the LM2775 is in shutdown, the user can chose to have the output voltage pulled to GND or left in a high impedance state by setting the OUTDIS pin high or low. The LM2775 has been placed in TIs 8-pin WSON, a package with excellent thermal properties that keeps the part from overheating under almost all rated operating conditions.

2.7-V to 5.5-V Input Range
Fixed 5-V Output
200-mA Output Current
Inductorless Solution: Only Requires 3 Small
Ceramic Capacitors
Shutdown Disconnects Load from V_IN
Current Limit and Thermal Protection
2-MHz Switching Frequency
PFM Operation During Light Load Currents (PFM
pin tied high)

Vin (min) (V)	2.7
Vin (max) (V)	5.5
Vout (min) (V)	5
Vout (max) (V)	5
Iout (max) (A)	0.2
Regulated outputs (#)	1
Switching frequency (min) (kHz)	1700
Switching frequency (max) (kHz)	2300
Iq (typ) (mA)	0.075
Features	Load Disconnect
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Type	Charge pump
