Описание

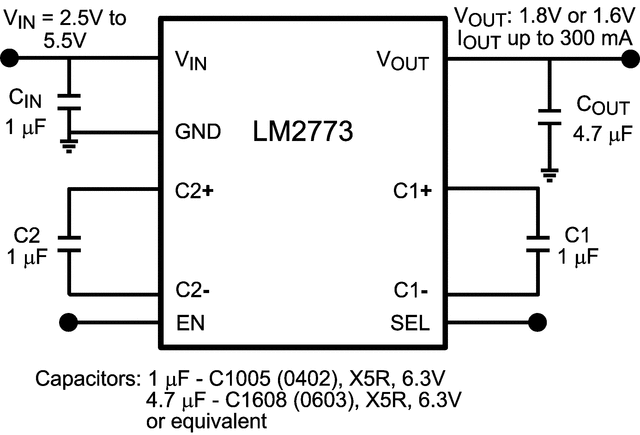

The LM2773 is a switched capacitor step-down regulator that produces a selectable 1.8V or 1.6V output. It is capable of supplying loads up to 300mA. The LM2773 operates with an input voltage from 2.5V to 5.5V, accommodating 1-cell Li-Ion batteries and chargers. The LM2773 utilizes a regulated charge pump with gains of 2/3x and 1x. It has very low ripple and noise on both the input and output due to its pre-regulated 1.15MHz (typ.) switching frequency and spread spectrum operation. When output currents are low, the LM2773 automatically switches to a low-ripple PFM regulation mode to maintain high efficiency over the entire load range. The LM2773 is available in TI's 0.5mm pitch 9-bump DSBGA.

Low-Noise Spread Spectrum Operation
1.8V/1.6V Selectable Output Voltage
2% Output Voltage Regulation
> 75% Efficiency in 1.8V Mode
Very Low Output Ripple: 10mV @ 300mA
Output Currents up to 300mA
2.5V to 5.5V Input Voltage Range
Shutdown Disconnects Load from V_IN
1.15MHz Switching Frequency
No Inductors…Small Solution Size
Short Circuit and Thermal Protection
0.5mm pitch, DSBGA-9 (1.511 × 1.511mm × 0.6mm)

All trademarks are the property of their respective owners.

Vin (min) (V)	2.5
Vin (max) (V)	5.5
Vout (min) (V)	1.6
Vout (max) (V)	1.8
Iout (max) (A)	0.3
Regulated outputs (#)	1
Switching frequency (min) (kHz)	1150
Switching frequency (max) (kHz)	1150
Iq (typ) (mA)	0.048
Features	Enable
Operating temperature range (°C)	-30 to 85
Rating	Catalog
Type	Charge pump
