Описание

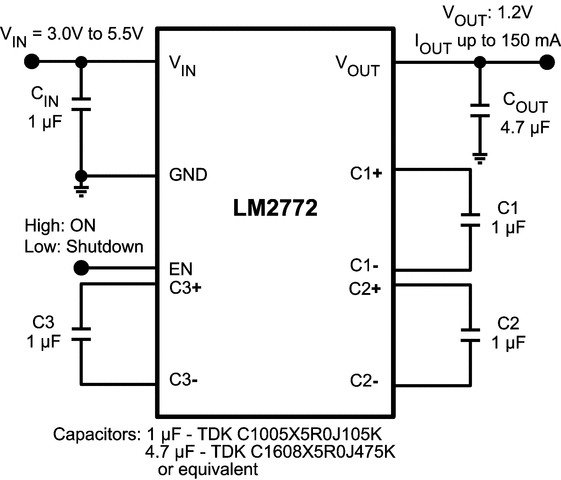

The LM2772 is a switched capacitor step-down regulator that produces a 1.2V output. It is capable of supplying loads up to 150mA with 3% output voltage regulation over line, load, and temperature. The LM2772 operates with an input voltage from 3.0V to 5.5V, accommodating 1-cell Li-Ion batteries and chargers. The LM2772 utilizes a highly efficient regulated multi-gain charge pump. Pre-regulated 1.1MHz fixed-frequency switching results in very low ripple and noise on both the input and the output. When output currents are low, the part automatically switches to a low-ripple PFM regulation mode to maintain high efficiency over the entire load range. The LM2772 is available in TI’s WSON-10 Package (WSON-10).

Low-Noise Fixed Frequency Operation
1.2V Output Voltage
3% Output Voltage Regulation
Li-Ion (3.6V) to 1.2V with 80% Efficiency
Very Low Output Ripple: 8mV @ 150mA
Output Currents up to 150mA
2.7V to 5.5V Input Voltage Range
Shutdown Disconnects Load from V_IN
1.1MHz Switching Frequency
No Inductors…Small Solution Size
Short Circuit and Thermal Protection
WSON-10 Package (3mm × 3mm × 0.8mm)

All trademarks are the property of their respective owners.

Vin (min) (V)	2.7
Vin (max) (V)	5.5
Vout (min) (V)	1.2
Vout (max) (V)	1.2
Iout (max) (A)	0.15
Regulated outputs (#)	1
Switching frequency (min) (kHz)	800
Switching frequency (max) (kHz)	1500
Iq (typ) (mA)	0.05
Features	Enable
Operating temperature range (°C)	-30 to 85
Rating	Catalog
Type	Charge pump
