Описание

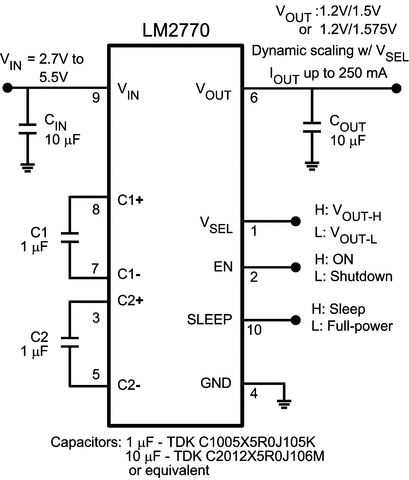

The LM2770 is a switched capacitor step-down regulator that is ideal for powering low-voltage applications in portable systems. The LM2770 can supply load currents up to 250mA and operates over an input voltage range of 2.7V to 5.5V. This makes the LM2770 a great choice for systems powered by 1-cell Li-Ion batteries and chargers. The output voltage of the LM2770 can be dynamically switched between two output levels with a logic input pin. Output voltage pairs currently available include 1.2V/1.5V and 1.2V/1.575V. Other pairs of voltage options can be developed upon request. LM2770 efficiency is superior to both fixed-gain switched capacitor buck regulators and low-dropout linear regulators (LDO's). Multiple fractional gains maximize power efficiency over the entire input voltage and output current ranges. The LM2770 can also be switched into a low-power sleep mode when load currents are light (≤ 20mA). In sleep mode, the charge pump is off, and the output is driven with a low-noise, low-power linear regulator. Soft-start, short-circuit protection, current-limit protection, and thermal-shutdown protection are also included. The LM2770 is available in TI’s small 10-pin Leadless Leadframe Package (WSON-10).

High Efficiency Multi-Gain Architecture: Peak Power Efficiency >85%
Output Voltage Pairs: 1.2V/1.5V and 1.2V/1.575V
Dynamic Output Voltage Selection
±3% Output Voltage Accuracy
Output Currents up to 250mA
2.7V to 5.5V Input Range
Low-Supply-Current Sleep Mode
55µA Quiescent Supply Current in Full-Power Mode
Soft-Start
Short-Circuit Protection in Full-Power Mode
Current-Limit Protection in Sleep Mode
WSON-10 Package (3mm × 3mm × 0.8mm)

All trademarks are the property of their respective owners.

Vin (min) (V)	2.7
Vin (max) (V)	5.5
Vout (min) (V)	1.2
Vout (max) (V)	1.575
Iout (max) (A)	0.25
Regulated outputs (#)	1
Switching frequency (min) (kHz)	475
Switching frequency (max) (kHz)	925
Iq (typ) (mA)	0.055
Features	Dynamic Voltage Scaling
Operating temperature range (°C)	-30 to 105
Rating	Catalog
Type	Charge pump
