LM2681 Texas instruments

LM2681

Уточнить цену

LM2681

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

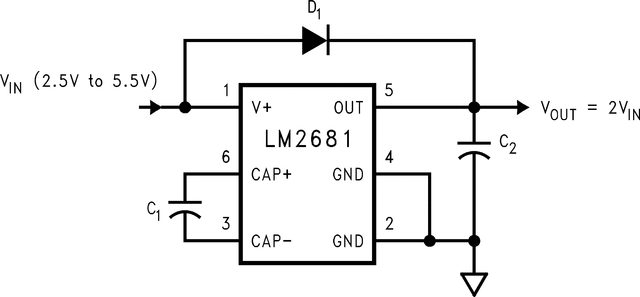

The LM2681 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of +2.5V to +5.5V. Two low cost capacitors and a diode (needed during start-up) is used in this circuit to provide up to 20 mA of output current. The LM2681 can also work as a voltage divider to split a voltage in the range of +1.8V to +11V in half. The LM2681 operates at 160 kHz oscillator frequency to reduce output resistance and voltage ripple. With an operating current of only 550 µA (operating efficiency greater than 90% with most loads) the LM2681 provides ideal performance for battery powered systems. The device is in a SOT-23, 6-lead package.

Doubles or Splits Input Supply Voltage
SOT-23 6-Lead Package
15Ω Typical Output Impedance
90% Typical Conversion Efficiency at 20 mA

All trademarks are the property of their respective owners.

Vin (min) (V)	2.5
Vin (max) (V)	5.5
Vout (min) (V)	1.8
Vout (max) (V)	11
Iout (max) (A)	0.02
Regulated outputs (#)	1
Switching frequency (min) (kHz)	40
Switching frequency (max) (kHz)	80
Iq (typ) (mA)	0.55
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Type	Charge pump
