Описание

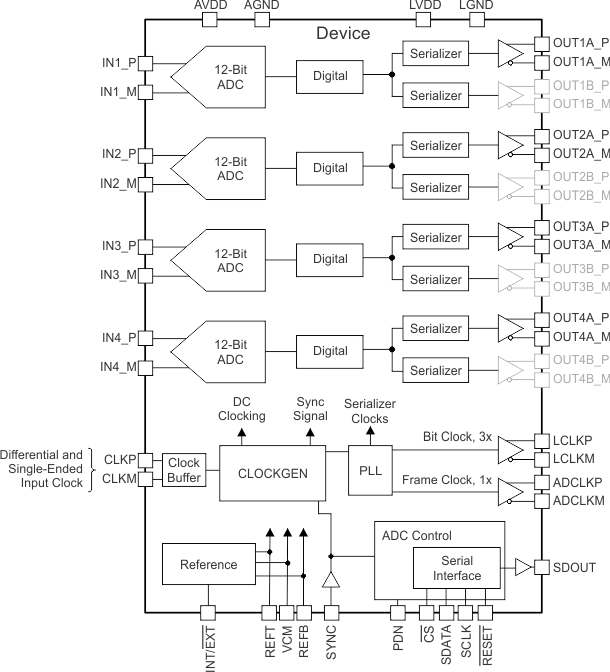

The VSP5324-Q1 device is a low-power, 12-bit, 80-MSPS, quad-channel, analog-to-digital converter (ADC). Low-power consumption and multiple-channel integration in a compact package makes the device attractive for 3D time-of-flight (ToF) systems.Serial low-voltage differential signaling (LVDS) outputs reduce the number of interface lines and enable high system integration. The device is available in a compact 9-mm × 9-mm VQFN-64 Package.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results
- Device Temperature Grade 2: –40°C to +105°C
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
Designed for Low Power:
- One-Lane Interface:
  65 mW per Channel at 50 MSPS
- Two-Lane Interface:
  82 mW per Channel at 80 MSPS
Dynamic Performance:
- 5-MHz Input Frequency, 80 MSPS
- SNR: 70 dBFS
- SFDR: 85 dBc
Serial LVDS ADC Data Outputs
Variety of LVDS Test Patterns to Verify Data Capture
Package: 9-mm × 9-mm VQFN-64
Operating Temperature: –40°C to +105°C

Resolution (Bits)	12
Number of channels	4
Sample rate (Msps)	80
Gain (min) (dB)	0
Gain (max) (dB)	12
Pd (typ) (mW)	2.2
Supply voltage (max) (V)	2.2
Operating temperature range (°C)	-40 to 105
Output data format	LVDS
Rating	Automotive
