Описание

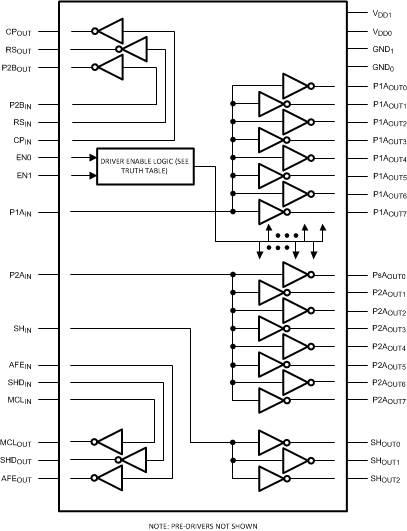

The LM98555 is a highly integrated driver circuit intended for CCD driving applications. It combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application.

All CCD Drivers Integrated into One Package
High Strength Drivers Designed Specifically for CCD Loads
Ability to Scale Clock Driver Strength
Skew Specifications Ensured
Separate Input and Output Power Supplies
CMOS Process Technology
64-Pin HTSSOP Package with Extended Power Handling Capability

Key Specifications

Supply Voltage
- Inputs 3.0 to 5.5V
- Drivers 4.5 to 5.8V
Maximum Output Skew Between P1A and P2A Outputs 0.5 ns
Maximum Power Handling 2.0W

All trademarks are the property of their respective owners.

Number of channels	9
Pd (typ) (mW)	2000
Supply voltage (max) (V)	5
Operating temperature range (°C)	0 to 70
Output data format	CMOS
Rating	Catalog
