Описание

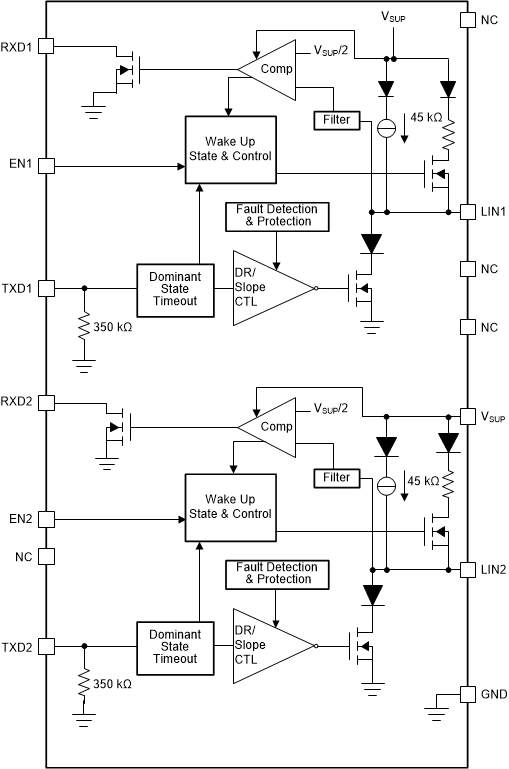

The TLIN1022-Q1 is a Dual Local Interconnect Network (LIN) physical layer transceiver with integrated wake-up and protection features, complaint to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A and ISO/DIS 17987–4.2 standards. LIN is a single wire bidirectional bus typically used for low speed in-vehicle networks using data rates up to 20 kbps. The TLIN1022-Q1 is designed to support 12 V applications with wider operating voltage and additional bus-fault protection. The LIN receiver supports data rates up to 100 kbps for in-line programming. The TLIN1022-Q1 converts the LIN protocol data stream on the TXD input into a LIN bus signal using a current-limited wave-shaping driver which reduces electromagnetic emissions (EME). The receiver converts the data stream to logic level signals that are sent to the microprocessor through the open-drain RXD pin. Ultra-low current consumption is possible using the sleep mode which allows wake-up via LIN bus or pin.

AEC-Q100 Qualified for automotive applications
- Temperature: –40°C to 125°C ambient
- HBM certification level: ±8 kV
- CDM certification level: ±1.5 kV
Compliant to LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2 A and ISO/DIS 17987–4.2 (See SLLA491)
Conforms to SAEJ2602 recommended practice for LIN (See SLLA491)
Supports 12 V battery applications
LIN transmit data rate up to 20 kbps.
Wide operating ranges
- 4 V to 36 V supply voltage
- ±45 V LIN bus fault protection
Sleep mode: ultra-low current consumption allows wake-up event from:
- LIN bus
- Local wake up through EN
Power up and down glitch free operation
Protection features:
- Under voltage protection on V_SUP
- TXD Dominant time out protection (DTO)
- Thermal shutdown protection
- Unpowered node or ground disconnection failsafe at system level.
Available in SOIC (14) package and leadless VSON (14) Package with improved automated optical inspection (AOI) capability

Protocols	LIN
Number of channels	2
Supply voltage (V)	4 to 36
Bus fault voltage (V)	-45 to 45
Signaling rate (max) (MBits)	0.02
Rating	Automotive
Operating temperature range (°C)	-40 to 125
Low-power mode	Sleep, Standby
Isolated	No
