Описание

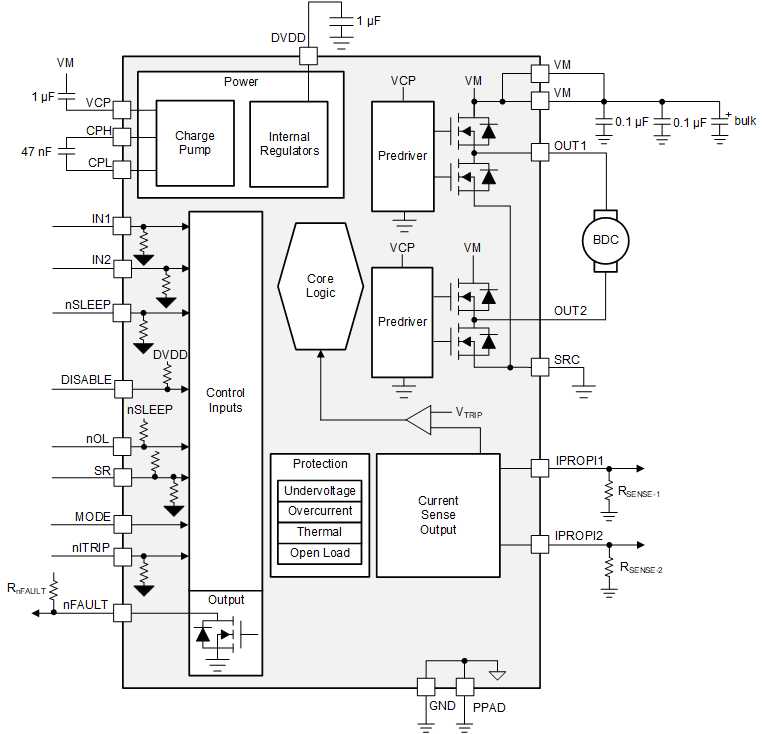

The DRV8873-Q1 device is an integrated driver IC for driving a brushed DC motor in automotive applications. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that drive motors bi-directionally with up to 10-A peak current. The device operates from a single power supply and supports a wide input supply range from 4.5 V to 38 V.A PH/EN or PWM interface allows simple interfacing to controller circuits. Alternatively, independent half-bridge control is available to drive two solenoid loads.Integrated current sensing provides an output current proportional to the motor load current of both hide-side FETs without the need for high-power sense resistors. This can be used to detect motor stall or change in load conditions.A low-power sleep mode is provided to achieve very-low quiescent current draw by shutting down much of the internal circuitry. Internal protection functions are provided for undervoltage lockout, charge pump faults, overcurrent protection, short-circuit protection, open-load detection, and overtemperature. Fault conditions are indicated on an nFAULT pin and through the SPI registers.

AEC-Q100 qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C, T_A
N-channel H-bridge motor driver
- Drives one bidirectional brushed DC motor
- Two unidirectional brushed DC motors
- Solenoids or other resistive and inductive loads
4.5-V to 38-V Operating voltage range
10-A Peak current drive
Low HS + LS R_DS(ON)
- 150 mΩ at T_J = 25°C, 13.5 V
- 250 mΩ at T_J = 150°C, 13.5 V
Integrated current sensing
Proportional current output (IPROPI)
Configurable control interface
- PH/EN
- PWM (IN1/IN2)
- Independent half-bridge control
Supports 1.8-V, 3.3-V, 5-V logic inputs
SPI or hardware interface options
Small package and footprint
- 24 HTSSOP PowerPAD™ IC package
Protection features
- VM undervoltage lockout (UVLO)
- Charge pump undervoltage (CPUV)
- Overcurrent protection (OCP)
- Output short to battery and short to ground protection
- Open load detection
- Thermal shutdown (TSD)
- Fault condition output (nFAULT / SPI)
Spread spectrum clocking for low electromagnetic interference (EMI)
Functional Safety-Capable
- Documentation available to aid functional safety system design

Number of full bridges	1
Vs (min) (V)	4.5
Vs ABS (max) (V)	40
Peak output current (A)	10
RDS(ON) (HS + LS) (mΩ)	150
Sleep current (µA)	15
Control mode	Independent 1/2-Bridge, PH/EN, PWM
Control interface	Hardware (GPIO), SPI
Features	Current sense Amplifier, Integrated Current Sensing, Open-Load Detection
Rating	Automotive
TI functional safety category	Functional Safety-Capable
Operating temperature range (°C)	-40 to 125
