Описание

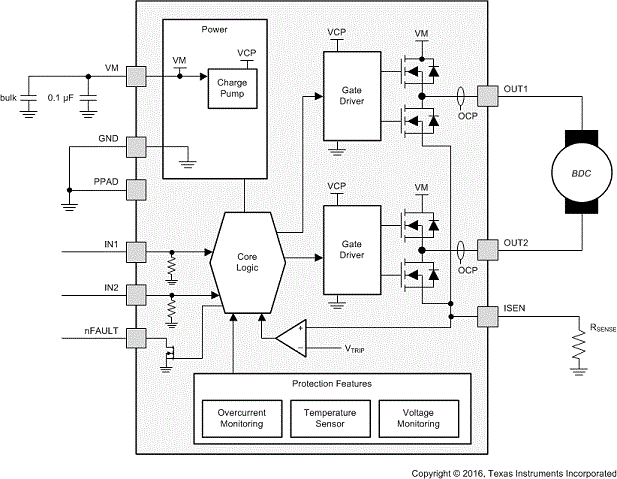

The DRV8872-Q1 device is a brushed DC (BDC) motor driver for infotainment, HUD projector adjustment, motorized shifter knobs, and piezo horn drivers. Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that provide bidirectional control of motors up to 3.6-A peak current. The inputs can be pulse-width modulated (PWM) to control motor speed, using a choice of current-decay modes. Setting both inputs low enters a low-power sleep mode.The DRV8872-Q1 device features integrated current regulation, based on an internal reference voltage and the voltage on the ISEN pin, which is proportional to motor current through an external sense resistor. The ability to limit current to a known level can significantly reduce the system power requirements and bulk capacitance needed to maintain stable voltage, especially for motor startup and stall conditions. The device is fully protected from faults and short circuits, including undervoltage lockout (UVLO), overcurrent protection (OCP), and thermal shutdown (TSD). Faults are communicated by pulling the nFAULT output low. When the fault condition is removed, the device automatically resumes normal operation.

AEC-Q100 Qualified for Automotive Applications:
- Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
H-Bridge Motor Driver
- Drives One DC Motor, One Winding of a Stepper Motor, or Other Loads
Wide 6.8-V to 45-V Operating Voltage
565-mΩ Typical R_DS(on) (HS + LS)
3.6-A Peak Current Drive
PWM Control Interface
Integrated Current Regulation
Low-Power Sleep Mode
Fault Status Output Pin
Small Package and Footprint
- 8-Pin HSOP With PowerPAD™
- 4.9 × 6 mm
Integrated Protection Features
- VM Undervoltage Lockout (UVLO)
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
- Fault Reporting (nFAULT)
- Automatic Fault Recovery

Number of full bridges	1
Vs (min) (V)	6.5
Vs ABS (max) (V)	50
Peak output current (A)	3.7
RDS(ON) (HS + LS) (mΩ)	565
Sleep current (µA)	13
Control mode	PWM
Control interface	Hardware (GPIO)
Features	Current Regulation
Rating	Automotive
TI functional safety category	Functional Safety-Capable
Operating temperature range (°C)	-40 to 125
